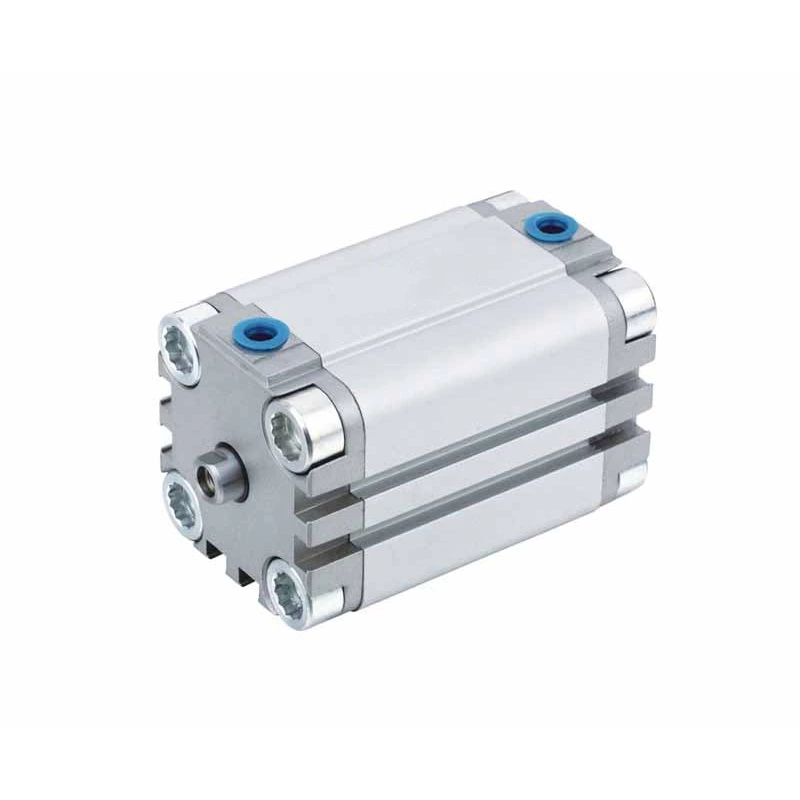

ADVU Series Compact Cylinder
FEATURES
|
● Action |
Double acting, single rod/double rod |
|
● Fluid |
Filtered compressed air |
|
● Ensured Pressure Resistance |
1.5MPa |
|
● Ambient and fluid temperature |
-20~80 (No freezing) |
|
● Cushion |
Rubber bumper |

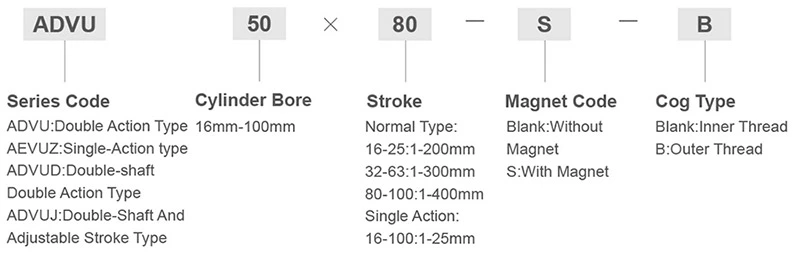

Ordering Code
Specification
| Bore(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Action | Double acting, single rod/double rod | |||||||||
| Fluid | Filtered compressed air | |||||||||
| Ensured Pressure Resistance | 1.5MPa | |||||||||
| Operating pressure range |
ADVU - -P-A | 0.12~1.0MPa | 0.1~1.0MPa | 0.08~1.0MPa | 0.06~1.0MPa | |||||
| ADVU - -P-A-S2 | 0.13~1.0MPa | 0.12~1.0MPa | 0.1~1.0MPa | 0.8~1.0MPa | ||||||
| Ambient and fluid temperature | -20~80 (No freezing) | |||||||||
| Port size | M5 | G1/8" | G1/4" | |||||||
| Piston rod thread | Female thread | M4 | M5 | M6 | M8 | M10 | M12 | |||
| Male thread | M8 | M10×1.25 | M12×1.25 | M16×1.5 | M20×1.5 | |||||
| Cushion | Rubber bumper | |||||||||

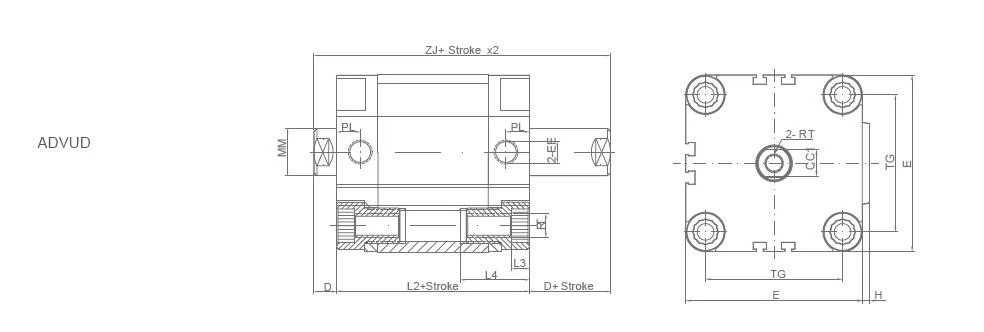

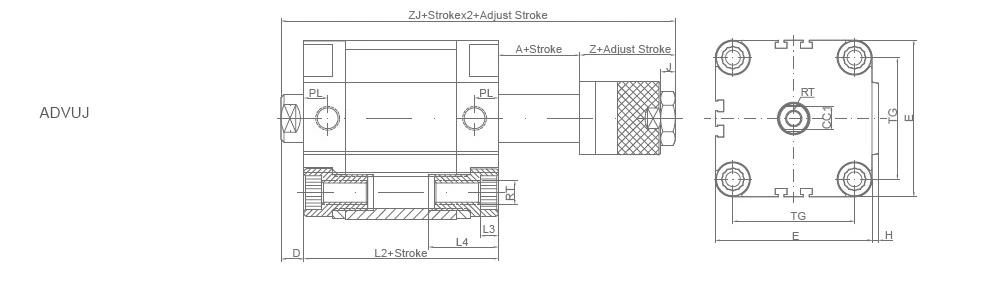

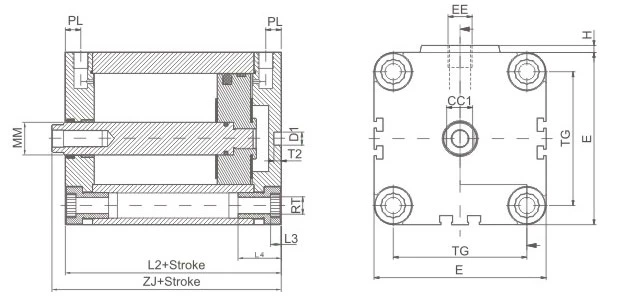

Overall Dimensions
| Bore size(mm) | D1 | E | EE | H | L2 | L3 | L4 | φMM | PL | RT | T2 | TG | ZJ | CC1 |
| 16 | 6 | 29 | M5 | 1 | 38 | 3 | 16 | 8 | 8 | M4 | 4 | 18 | 42.5 | 7 |
| 20 | 6 | 36 | M5 | 1.5 | 38 | 4 | 18 | 10 | 8 | M5 | 4 | 22 | 42.5 | 9 |
| 25 | 6 | 40 | M5 | 1.5 | 39.5 | 4 | 18 | 10 | 8 | M5 | 4 | 26 | 45 | 9 |
| 32 | 6 | 50 | G1/8 | 2 | 44.5 | 5 | 20 | 12 | 8 | M6 | 4 | 32 | 50.5 | 10 |
| 40 | 6 | 60 | G1/8 | 2.5 | 45.5 | 5 | 20 | 12 | 8 | M6 | 4 | 42 | 52 | 10 |
| 50 | 6 | 68 | G1/8 | 3 | 45.5 | 6 | 20 | 16 | 8 | M8 | 4 | 50 | 53 | 13 |
| 63 | 8 | 87 | G1/8 | 4 | 50 | 8 | 25 | 16 | 8 | M10 | 4 | 62 | 57.5 | 13 |
| 80 | 8 | 107 | G1/8 | 4 | 56 | 8 | 25 | 20 | 8.5 | M10 | 4 | 82 | 64 | 17 |
| 100 | 8 | 128 | G1/4 | 5 | 66.5 | 8 | 25 | 35 | 10.5 | M10 | 4 | 103 | 76.5 | 22 |
| Bore(mm) | E | EE | H | L2 | L3 | L4 | MM | PL | RT | TG | ZJ | CC1 | D |
| 16 | 29 | M5 | 1 | 38 | 4 | 18.5 | 8 | 8 | M4 | 18 | 44 | 6 | 6 |
| 20 | 36 | M5 | 1.5 | 38 | 4 | 18.5 | 10 | 8 | M5 | 22 | 43.5 | 8 | 5.5 |
| 25 | 40 | M5 | 1.5 | 39.5 | 4 | 18.5 | 10 | 8 | M5 | 26 | 46 | 8 | 6.5 |
| 32 | 50 | G1/8 | 2 | 44.5 | 5 | 22 | 12 | 8 | M6 | 32 | 51.5 | 10 | 7 |
| 40 | 60 | G1/8 | 2.5 | 45.5 | 5 | 22 | 12 | 8 | M6 | 42 | 52 | 10 | 6.5 |
| 50 | 68 | G1/8 | 2.8 | 46.5 | 5 | 22 | 16 | 8 | M8 | 50 | 54.5 | 14 | 8 |
| 63 | 88 | G1/8 | 4 | 50 | 6 | 26 | 16 | 8 | M10 | 62 | 58 | 14 | 8 |
| 80 | 107 | G1/8 | 4 | 56 | 6 | 26 | 20 | 8.5 | M10 | 82 | 64 | 17 | 8 |
| Bore(mm) | Z | E | EE | H | L2 | L3 | L4 | MM | PL | RT | J | TG | ZJ | CC1 | D | A |
| 16 | 13 | 29 | M5 | 1 | 38 | 4 | 18.5 | 8 | 8 | M4 | 6 | 18 | 63 | 6 | 6 | 6 |
| 20 | 15 | 36 | M5 | 1.5 | 38 | 4 | 18.5 | 10 | 8 | M5 | 6 | 22 | 64.5 | 8 | 5.5 | 6 |
| 25 | 15 | 40 | M5 | 1.5 | 39.5 | 4 | 18.5 | 10 | 8 | M5 | 6 | 26 | 67 | 8 | 6.5 | 6 |
| 32 | 18 | 50 | G1/8 | 2 | 44.5 | 5 | 22 | 12 | 8 | M6 | 6 | 32 | 75.5 | 10 | 7 | 6 |
| 40 | 18 | 60 | G1/8 | 2.5 | 45.5 | 5 | 22 | 12 | 8 | M6 | 6 | 42 | 76 | 10 | 6.5 | 6 |
| 50 | 20 | 68 | G1/8 | 2.8 | 46.5 | 5 | 22 | 16 | 8 | M8 | 7 | 50 | 80.5 | 14 | 8 | 6 |
| 63 | 20 | 88 | G1/8 | 4 | 50 | 6 | 26 | 16 | 8 | M10 | 7 | 62 | 84 | 14 | 8 | 6 |
| 80 | 25 | 107 | G1/8 | 4 | 56 | 6 | 26 | 20 | 8.5 | M10 | 8 | 82 | 95 | 17 | 8 | 6 |
