MXH Series Slide Cylinder
FEATURES
| ● Working Medium: | Air(to be filtered by 40μm filter element) |
| ● Action: | Double acting |
| ● Max.operating Pressure: | 0.7MPa |
| ● Piston Speed: | 50~500mm/s |

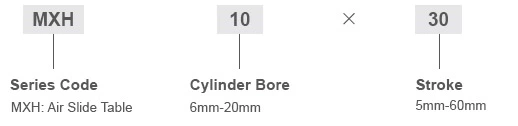

Ordering Code
Specification
| Bore(mm) | 6 | 10 | 16 | 20 |
| Guide Bearing Width | 5 | 7 | 9 | 12 |
| Working Medium | Air(to be fltered by 40μm fiter element) | |||
| Action | Double acting | |||
| Min.operating Pressure | 0.15MPa | 0.06MPa | 0.05MPa | |
| Max.operating Pressure | 0.7MPa | |||
| Ambient And Fluid Temperature | Without auto switch:-10~+70°C With auto switch:-10~+60C (No freezing) | |||
| Piston Speed | 50~500mm/s | |||
| Allowable Kinetic Energy | 0.0125 | 0.025 | 0.05 | 0.1 |
| Lubrication | Non-lube | |||
| Cushion | Rubber bumper on both ends | |||
| Stroke Length Tolerance | +1.0 0 | |||
| Piping Port Size | M5×0.8 | |||
