ACK Series Twist Clamp Cylinder
FEATURES
| ● Motion Pattern: | Double Action |
| ● Working Medium: | Air |
| ● Operating Pressure Range: | 0.15~1.0(23~148) kg/cm2(kpa) |
| ● Compression Resistance: | 1.5(215) kg/cm2(kpa) |

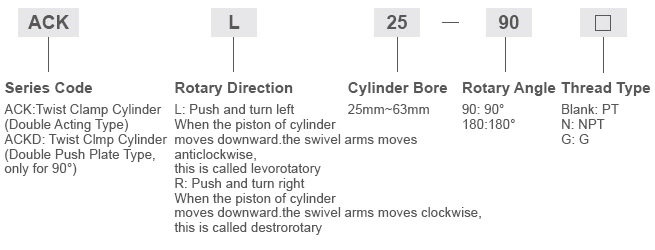

Ordering Code
Specification
| Bore(mm) | 25 | 32 | 40 | 50 | 63 |
| Metion Pattern | Double Action | ||||
| Working Medium | Air | ||||
| Operating Pressure Range | 0.15~1.0(23~148) kg/cm²(kpa) | ||||
| Compression Resistance | 1.5(215) kg/cm²(kpa) | ||||
| Working Temperature °C | -20~80℃ | ||||
| Operating Speed Range | 30~300 mm/s | ||||
| Stroke Tolerance Range | +1.0 0 | ||||
| Rotating Angle Tolerance Range | ±1.5 | ||||
| *Cushion Model | crash pad | ||||
| *Port Size | M5×0.8 | PT1/8 | |||
