MXS Series Slide Cylinder
FEATURES
| ● Working Medium: | Air(to be filtered by 40μm filter element) |
| ● Action: | Double acting |
| ● Max.operating Pressure: | 0.7MPa |
| ● Minimum Operating Pressure: | 0.15MPa |

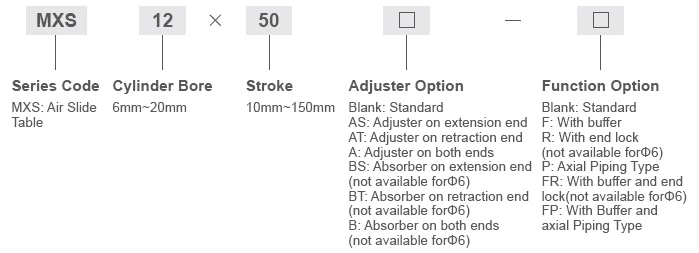

Ordering Code
Specification
| Bore(mm) | 6x2 (Equivalent Ф8) | 8x2 (Equivalent Ф11) | 12x2 (Equivalent Ф17) | 16x2 (Equivalent Ф22) | 20x2 (Equivalent Ф28) | 25x2 (Equivalent Ф35) |
| Working Medium | Air(to be fltered by 40μm fiter element) | |||||
| Action Way | Double- acting | |||||
| Maximun Operating Pressure | 0.7MPa | |||||
| Minimum Operating Pressure | 0.15MPa | |||||
| EnvironmentAnd Fluid Temperature | -10~+60°C | |||||
| Piston Speed | 50~500mm/s | |||||
| Buffering | Rubber bfer(standard) | |||||
| Lubrication | Non-lube | |||||
| Port Size | M3x0.5 | M5x0.8 | Rc1/8 | |||
