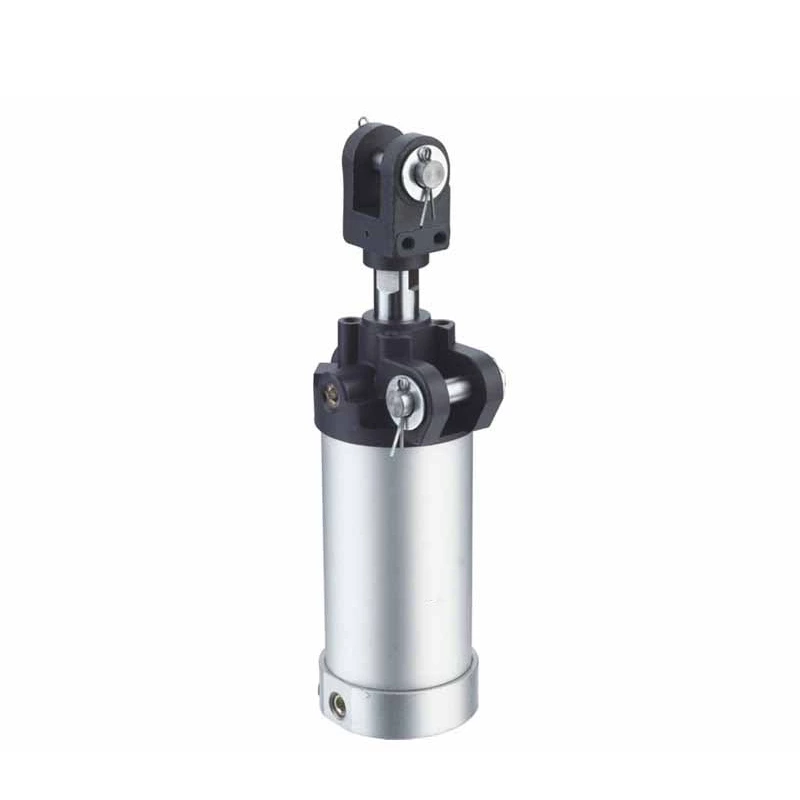

XCK Series Clamping Cylinder
FEATURES
|
● Working Medium |
Air |
|
● Ensured Pressure Resistance |
1.5Mpa(15kgf/cm2) |
|
● Mix. Working Pressur |
1.0Mpa(10kgf/cm2) |
|
● Min. Working Pressur |
0.1Mpa(1kgf/cm2) |
|
● Temperature Range |
-5~60℃ |
|
● Piston Speed |
50~500mm/s |
Ordering Code
Specification
| Bore(mm) | 40 | 50 | 63 | 80 |
| Working Medium | Air | |||
| Ensured Pressure Resistance | 1.5Mpa(15kgf/cm2) | |||
| Mix. Working Pressur | 1.0Mpa(10kgf/cm2) | |||
| Min. Working Pressur | 0.1Mpa(1kgf/cm2) | |||
| Temperature Range | -5~60℃ | |||
| Piston Speed | 50~500mm/s | |||
| Air Buffer | Yes | |||
| Lubrication | No Need | |||
| Thread Tolerance | 6H | |||
| Stroke Tolerance | 1.5 | |||
| 0(mm) | ||||
| Speed Controller | Yes | |||
| Mounting Type | Double Ear Ring | |||
| Port Size | G1/4" | G3/8" | ||

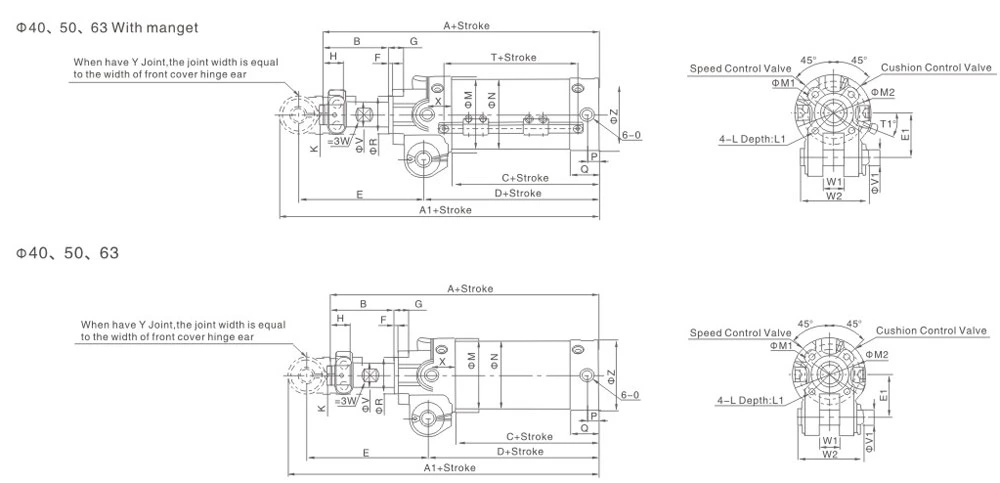

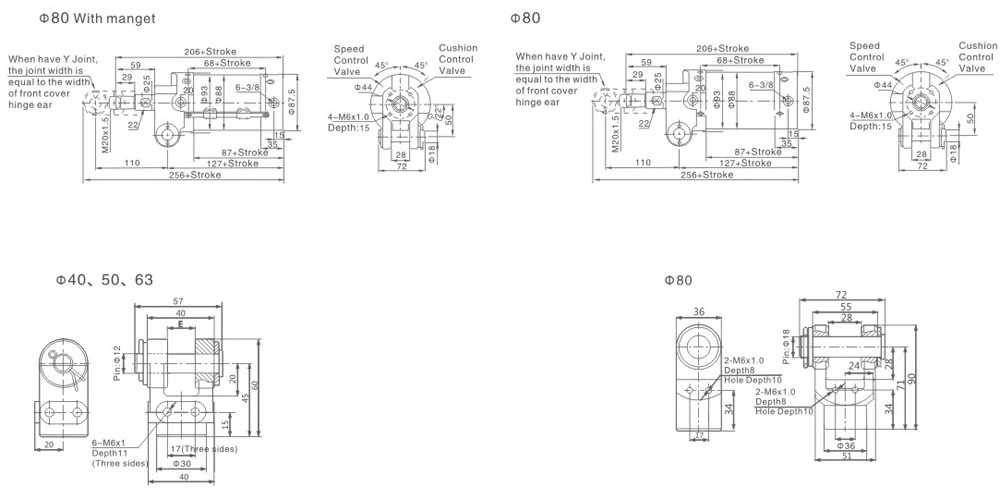

Overall Dimensions
| Bore(mm) | A | A1 | B | C | D | E | E1 | F | G | H | K | L | L1 | M | M1 | M2 | N | O | P | Q | R | V | V1 | W | W1 | W2 | X | Z | T | T1 | |
| XCKA | XCKB | ||||||||||||||||||||||||||||||
| 40 | 162 | 196 | 51 | 59 | 84 | 97 | 35 | 3 | 11.5 | 16 | M16X1.5 | M6X1 | 13 | 52 | 40 | 50 | 45 | 45295 | 9 | 21 | 30 | 20 | 12 | 17 | 16.5 | 19.5 | 54 | 20 | 47 | 54 | 24 |
| 50 | 165 | 199 | 51 | 65 | 87 | 97 | 35 | 3 | 11.5 | 16 | M16X1.5 | M6X1 | 12 | 60 | 40 | 50 | 55 | 45295 | 9.5 | 23 | 30 | 20 | 12 | 17 | 16.5 | 19.5 | 54 | 19 | 57 | 54 | 22 |
| 63 | 167 | 201 | 51 | 67 | 87 | 97 | 35 | 3 | 11.5 | 16 | M16X1.5 | M6X1 | 12 | 74 | 40 | 50 | 68 | 45295 | 9.5 | 23 | 30 | 20 | 12 | 17 | 16.5 | 19.5 | 54 | 19 | 70 | 54 | 22 |
| Model | Fit for Bore Size | E |
| XCKA50-Y | 40、 50、63 | 16.5 |
| XCKB50-Y | 40、 50、63 | 19.5 |
Other info

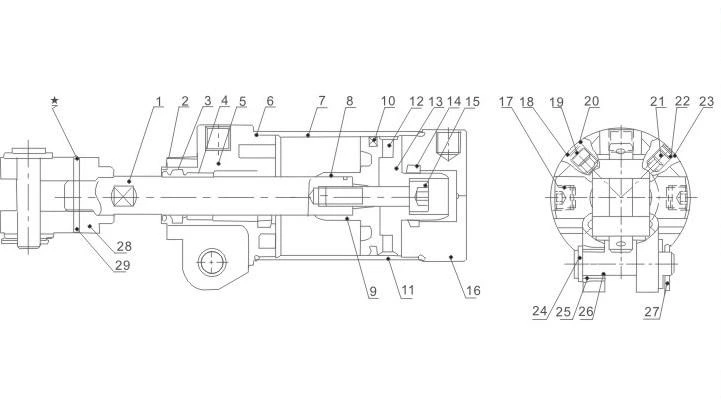

| NO | Designation | NO | Designation |
| 1 | Piston rod | 16 | Rear cover |
| 2 | Dust ring | 17 | Limit screw |
| 3 | Front cover 0-ring | 18 | O-ring |
| 4 | Slide bush | 19 | Speed control screw |
| 5 | Front cover | 20 | External reainer ring |
| 6 | O-ring | 21 | Cushion control screw |
| 7 | Aluminum tube | 22 | O-ring |
| 8 | Piston | 23 | External retainer ring |
| 9 | Piston rod O-ring | 24 | Gasket |
| 10 | Piston O-ring | 25 | Brass bush |
| 11 | Wear ring | 26 | PIN |
| 12 | Magnet | 27 | Split pin |
| 13 | Magnet base | 28 | Y |
| 14 | Cushion O-ring | 29 | Spring pin |
| 15 | Hexagon screw |
