RSQ Series Stopper Cylinder
FEATURES
|
● Fluid |
Air |
|
● Ensured Pressure Resistance |
1.5Mpa(15.3kgf/cm2) |
|
● Max.pressure |
1.0Mpa(10.2kgf/cm2) |
|
● Buffering |
(Rubber bumper) |
|
● Tolerance of stroke |
+1.4 (mm) |
|
● *Lubrication |
Not required |

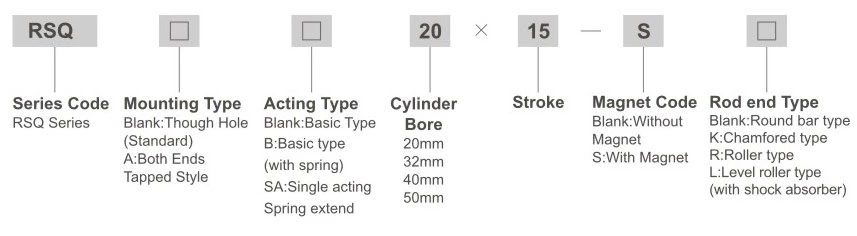

Ordering Code
Specification
| Bore(mm) | 20 | 32 | 40 | 50 |
| Motion Pattern | Double acting,Double acting with spring loaded,Single acting(Spring extend) | |||
| Fluid | Air | |||
| Ensured Pressure Resistance | 1.5Mpa(15.3kgf/cm2) | |||
| Max.pressure | 1.0Mpa(10.2kgf/cm2) | |||
| Ambient and fluid temperature | -10~+70℃:(Without auto switch:No freezing)+60℃ | |||
| Buffering | (Rubber bumper) | |||
| Tolerance of stroke | +1.4 (mm) | |||
| *Lubrication | Not required | |||
| Mounting | Through-hole,Both ends tapped common | |||
| Port size | RC(PT1/8) | |||

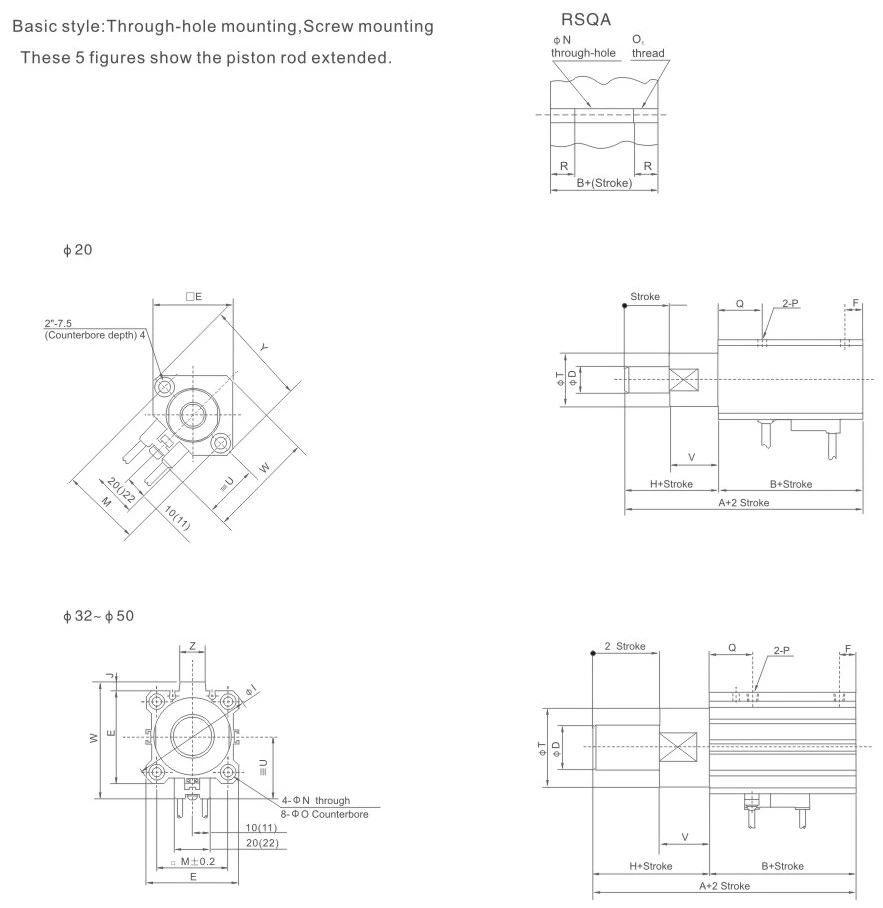

Overall Dimensions
| Model | B | N | Q1 | R |
| RS□QA20 | 45 | 5.5 | M6×1 | 10 |
| RS□QA32 | 48 | 5.5 | M6×1 | 10 |
| RS□QA40 | 52.5 | 5.5 | M6×1 | 10 |
| RS□QA50 | 54 | 6.6 | M8×1.25 | 14 |
| Bore(mm) | A | B | D | E | F | G | H | I | MJ | N | O | P | Q | T | U | V | W | Y | Z | |
| 20 | 67 | 45 | 12 | 36 | 8 | 4 | 22 | - | - | 36 | 5.5 | 9 7 | Rc 1/8 | 20 | 24 | 24.5 | 22 | 48 | 47 | - |
| 32 | 68 | 48 | 20 | 45 | 7.5 | 8 | 20 | 60 | 4.5 | 34 | 5.5 | 9 7 | Rc 1/8 | 20 | 36 | 31.5 | 20 | 58.5 | - | 14 |
| 40 | 80.5 | 52.5 | 25 | 52 | 8 | 10 | 28 | 69 | 5 | 40 | 5.5 | 9 7 | Rc 1/8 | 24.5 | 44 | 35 | 28 | 66 | - | 14 |
| 50 | 82 | 54 | 25 | 64 | 8 | 10 | 28 | 86 | 7 | 50 | 6.6 | 11 8 | Rc 1/8 | 24.5 | 56 | 41 | 28 | 80 | - | 19 |
Other info
| Bore(mm) | 20 | 32 | 40 | 50 | |
| Mounting | Through- hole | ● | ● | ● | ● |
| Both ends tapped style | ● | ● | ● | ● | |
| Built-in magnet | ● | ● | ● | ● | |
| Piping | Screw-in type | RC 1/8 | |||
| Built-in One-touch fitings | Φ6/4 | Φ8/6 | |||
| Action | Double acting Single acting(Single extend) , Double acting with spring loaded | ||||
| Rod end configuration | Round bar | ● | ● | ||
| Chamfered | ● | ● | |||
| Roller type | ● | ● | |||
| Lever type | - | ● | |||
| Bore size(mm) | Rod end configuration | ||
| Round bar, Chamfered type | Roller type | Lever type with shock absober | |
| 20 | 10.15.20 | 10.15.20 | - |
| 32 | 10.15.20 | ||
| 40 | 20.25.30 | 20.25.30 | 20.25.30 |
| 50 | |||
