CRQ2 Series Rotary Actuator
FEATURES
| ● Working Medium: | Air(to be filtered bu 40μm filter element) |
| ● Action Type: | Double-acting |
| ● Rotating Angle: | 80°~100°，170°~190° |
| ● Adjustable Angle Range: | ±5° |

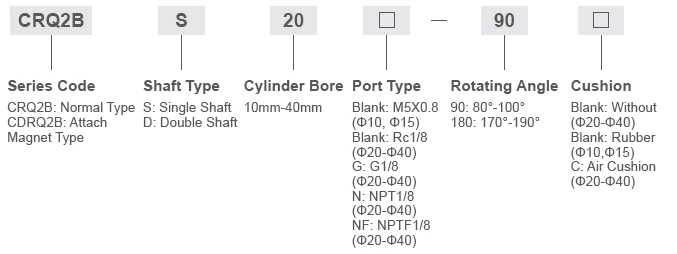

Ordering Code
Specification
| Bore(mm) | 10 | 15 | 20 | 30 | 40 | |
| Working Medium | Air(to be filtered bu 40μm filter element) | |||||
| Action Type | Double-acting | |||||
| Operating Pressure Range(Mpa) | 0.15~0.7 | 0.1~1.0 | ||||
| Environment and Fliud Temperature | 0~60℃ | |||||
| Cushion Type | Rubber cushion | None/air cushion(optional) | ||||
| Rotating Angle | 80°~100°，170°~190° | |||||
| Adjustable Angle Range | ±5° | |||||
| Output Torque N | 0.3 | 0.75 | 1.8 | 3.1 | 5.3 | |
| Allowable Kinetic Energy | No Cushion | - | - | 0.025 | 0.048 | 0.081 |
| Rubber Cushion | 0.25x10³ | 0.39x10³ | - | - | - | |
| Air Cushion | - | - | 0.12 | 0.25 | 0.40 | |
| Rotating Time Range(Sec/90°) | 0.2~0.7 | 0.2~1.0 | ||||
