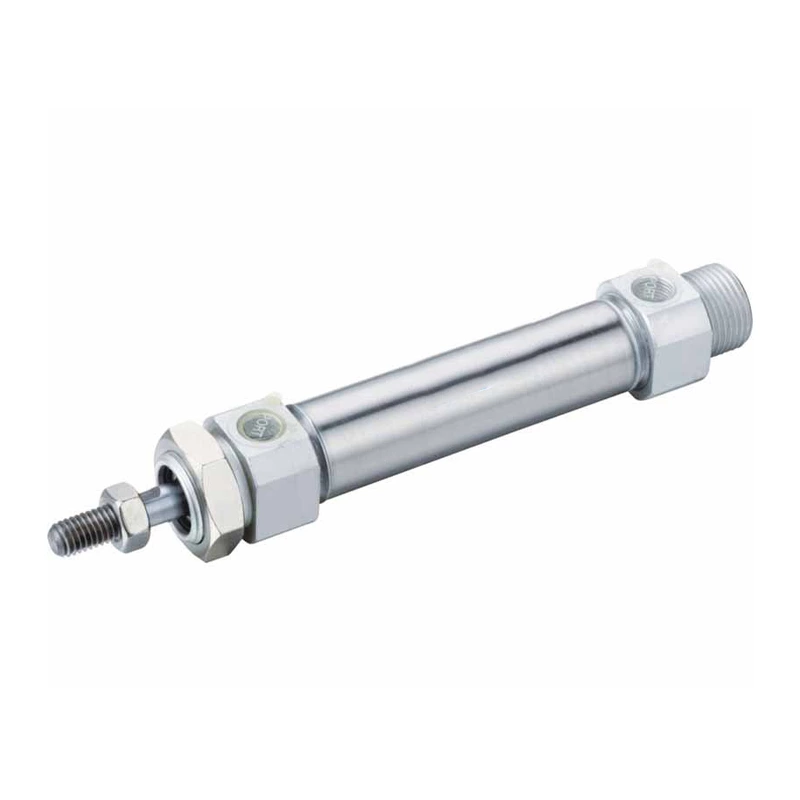

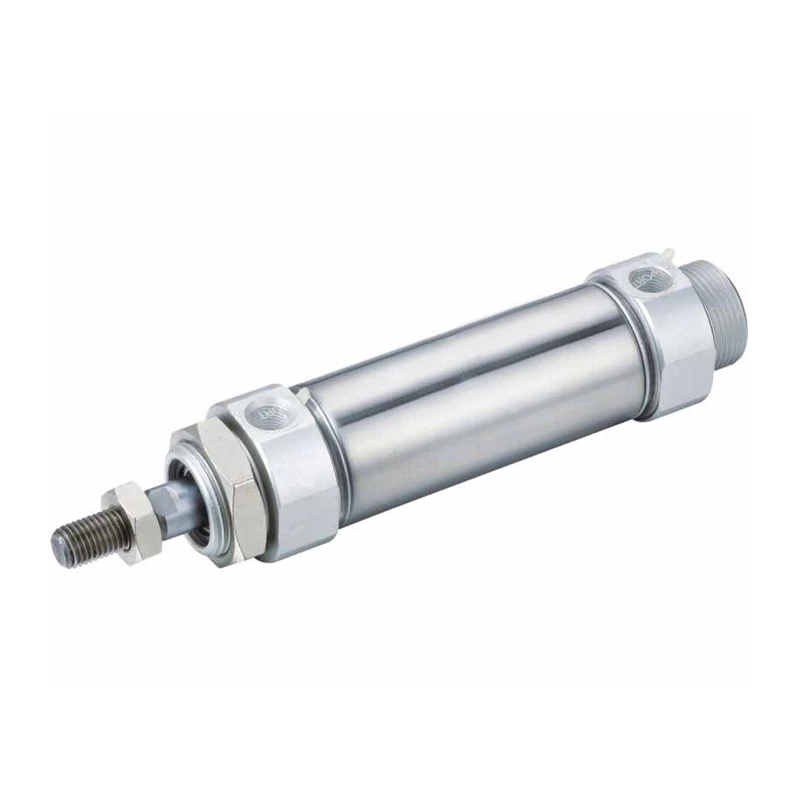

CM2 Series Mini Cylinder
FEATURES
|
● Working Medium |
Air |
|
● Motion Pattern |
Double action |
|
● Ensured Pressure Resistance |
15.3kgf/cm2(1.5Mpa) |
|
● Max.pressure |
10.2kgf/cm2(1.0Mpa) |
|
● Min.pressure |
0.5kgf/cm2(0.05Mpa) |
|
●Operating Temperature Range |
-10~+70℃ |

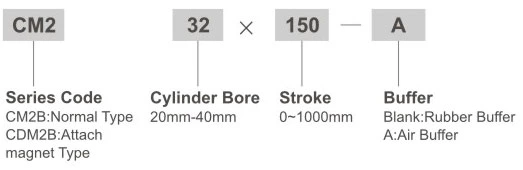

Ordering Code
Specification
| Bore(mm) | 20 | 25 | 32 | 40 |
| Working Medium | Air | |||
| Motion Pattern | Double action | |||
| Ensured Pressure Resistance | 15.3kgf/cm2(1.5Mpa) | |||
| Max.pressure | 10.2kgf/cm2(1.0Mpa) | |||
| Min.pressure | 0.5kgf/cm2(0.05Mpa) | |||
| Operating Temperature Range | -10~+70℃ | |||
| Operating Speed Range | 50~750mm/s | |||
| Buffering | Rubber buffer(Standard),Air buffer(Optional) | |||
| Margin of Stroke Error(mm) | 1.4 | |||
| 0mm | ||||
| Port size | G1/8" | G1/8" | G1/8" | G1/4" |

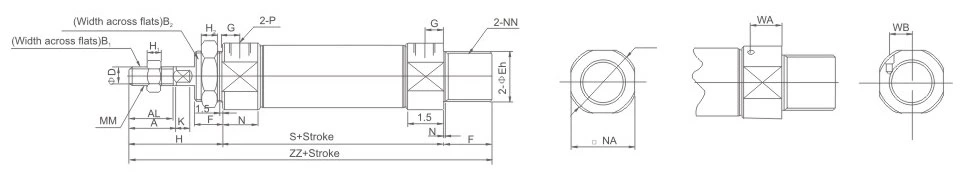

Overall Dimensions
| Diameter | Stroke range | A | AL | B1 | B2 | D | E | F | G | H | H1 | H2 | I | K | MM | N | NA | NN | P | S | ZZ | WA | WB |
| 20 | ~300 | 18 | 15.5 | 13 | 26 | 8 | 20 0 -0.033 | 13 | 8 | 41 | 5 | 8 | 28 | 5 | M8×1.25 | 15 | 24 | M20×1.5 | 45299 | 62 | 116 | 11.5 | 8.5 |
| 25 | ~300 | 22 | 19.5 | 17 | 32 | 10 | 26 0 -0.033 | 13 | 8 | 45 | 6 | 8 | 33.5 | 5.5 | M10×1.25 | 15 | 30 | M26×1.5 | 45299 | 62 | 120 | 11.5 | 10 |
| 32 | ~300 | 22 | 19.5 | 17 | 32 | 12 | 26 0 -0.033 | 13 | 8 | 45 | 6 | 8 | 37.5 | 5.5 | M10×1.25 | 15 | 34.5 | M26×1.5 | 45299 | 64 | 122 | 11.5 | 11.5 |
| 40 | ~300 | 24 | 21 | 22 | 41 | 14 | 32 0 | 16 | 11 | 50 | 6 | 10 | 46.5 | 7 | M14×1.5 | 21.5 | 42.5 | M32×2 | 45295 | 88 | 154 | 14 | 15 |

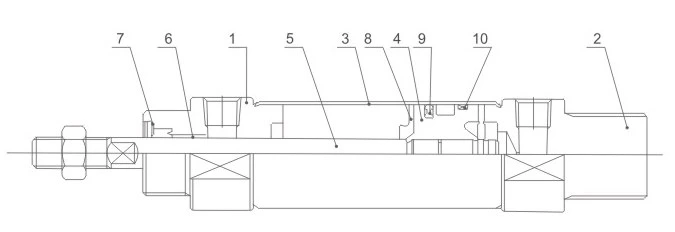

Other info
| NO. | Designation |
| 1 | Front Cover |
| 2 | Back Cover |
| 3 | Barrel |
| 4 | Piston |
| 5 | Piston rod |
| 6 | Oiled Bearing |
| 7 | Front Cover Seal Ring |
| 8 | Anti-crash cushion |
| 9 | Piston Seal |
| 10 | Wear Ring |
