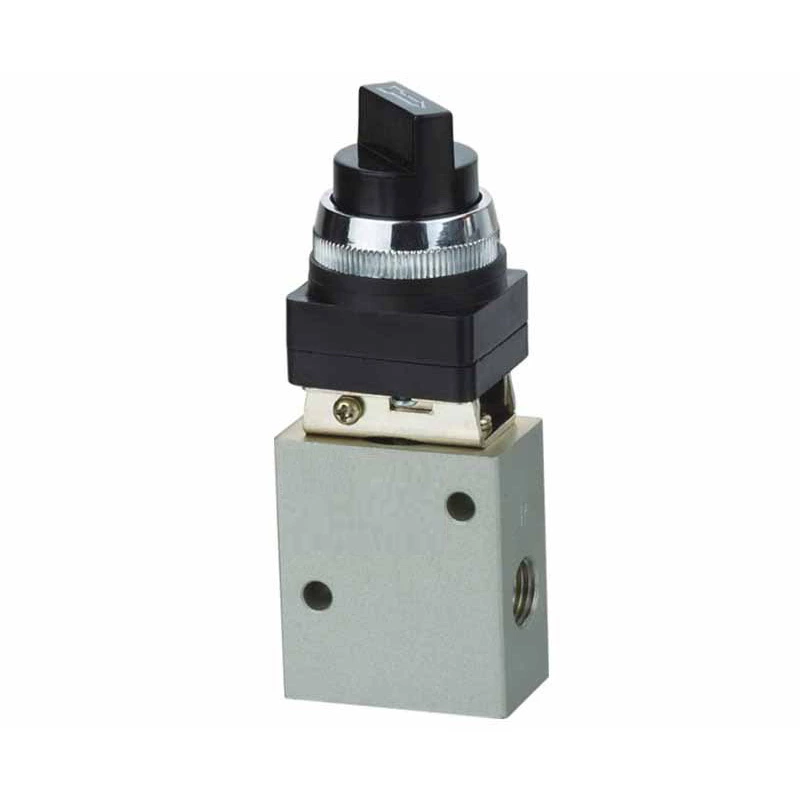

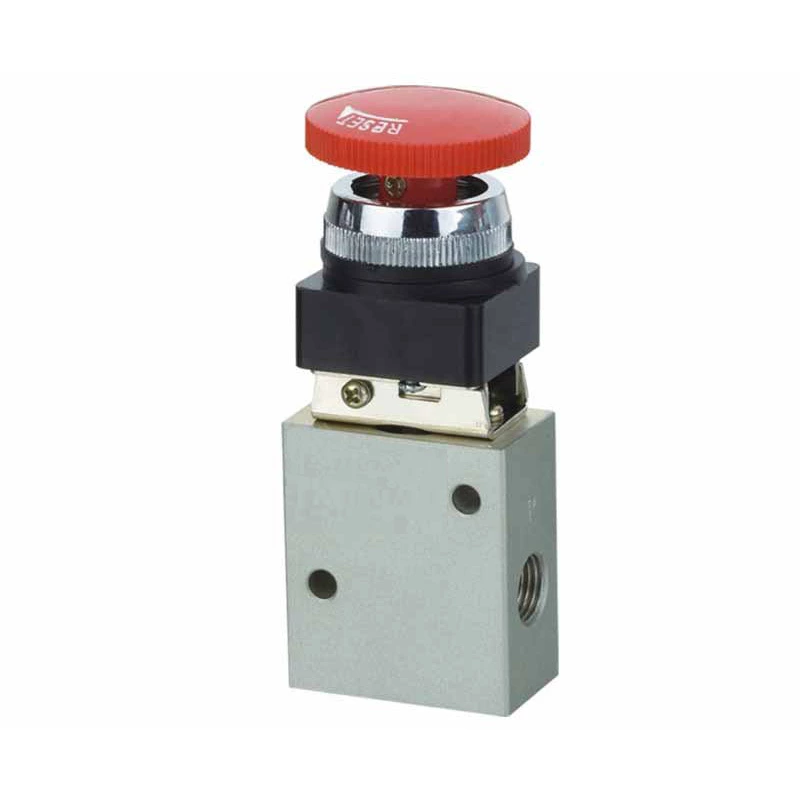

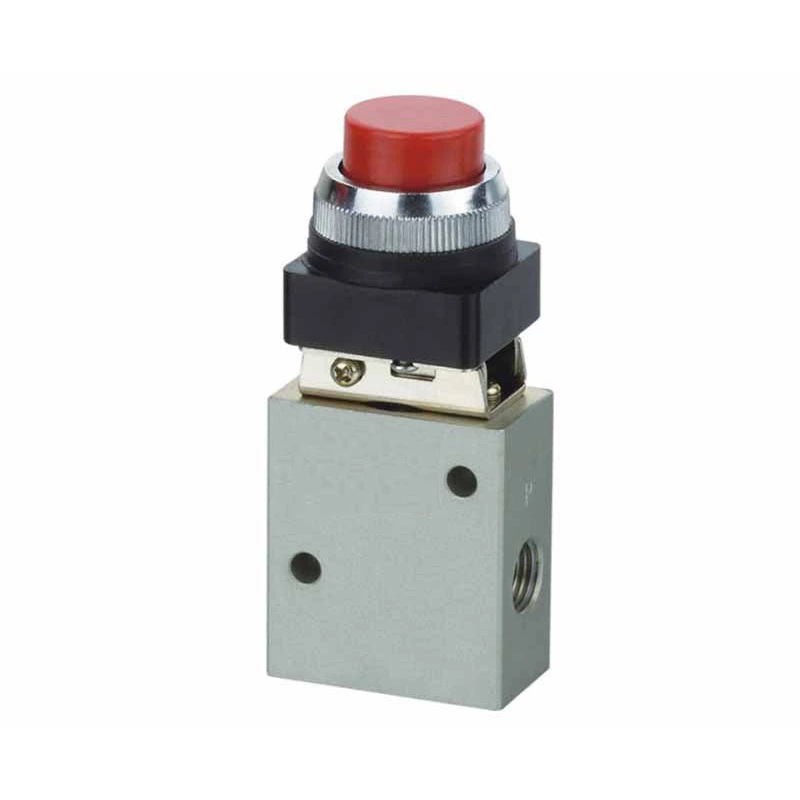

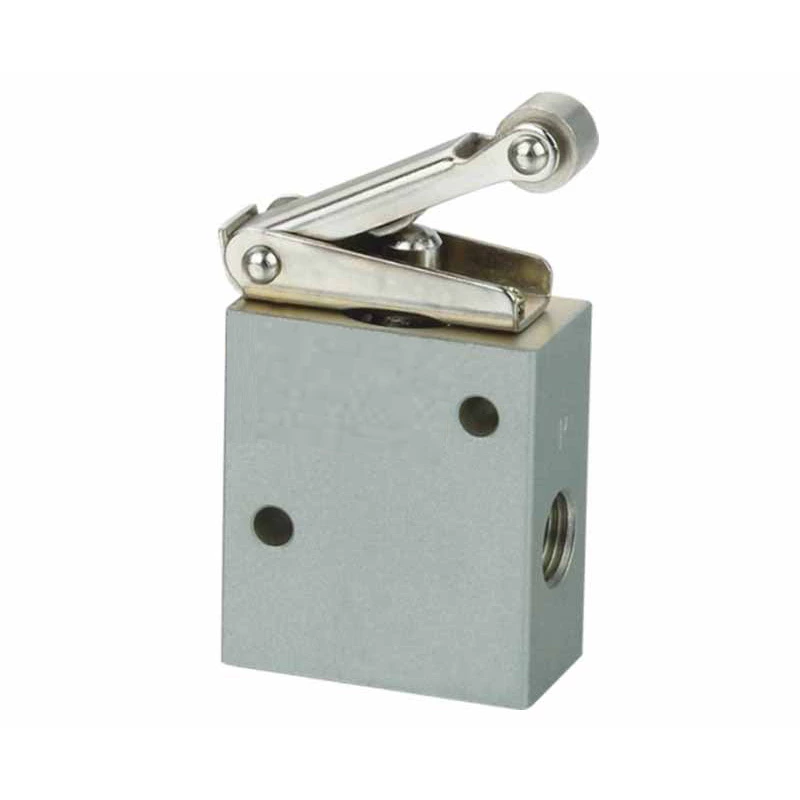

JM Series Mechanical Valve
| ●Working Medium | 40 Micron Filtered Air |
| ●Position and Way No. | 0-0.8MPa |
| ●Port Size | G1/4“ |
| ●Working-pressure Range | Two-position Three-way，Two-position Two-way |
| ●Operating Temperature | 0-60℃ |

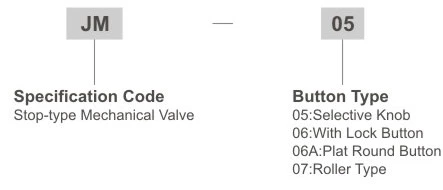

Ordering Code
Specification
| Model | JM-05 | JM-06 | JM-06A | JM-07 |
| Working Medium | 40 Micron Filtered Air | |||
| Position and Way No. | 0-0.8MPa | |||
| Port Size | G1/4" | |||
| Working-pressure Range | Two-position Three-way，Two-position Two-way | |||
| Operating Temperature | 0-60°C | |||

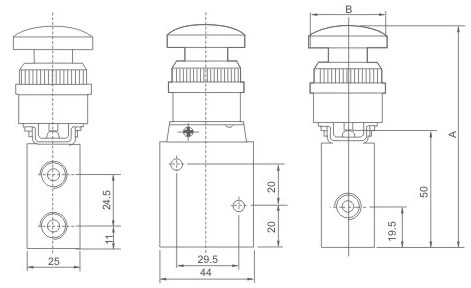

Overall Dimensions
| Model | JM-05 | JM-06 | JM-06A | JM-07 |
| A | 114 | 111 | 96 | 84.5 |
| B | 36.5 | 39.5 | 39.5 | 42.5 |
