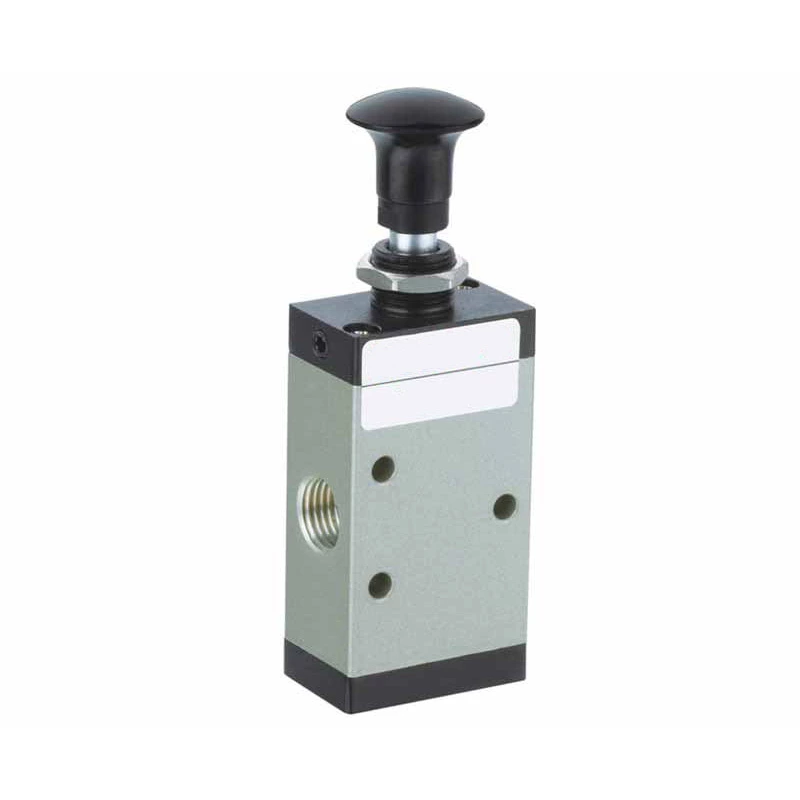

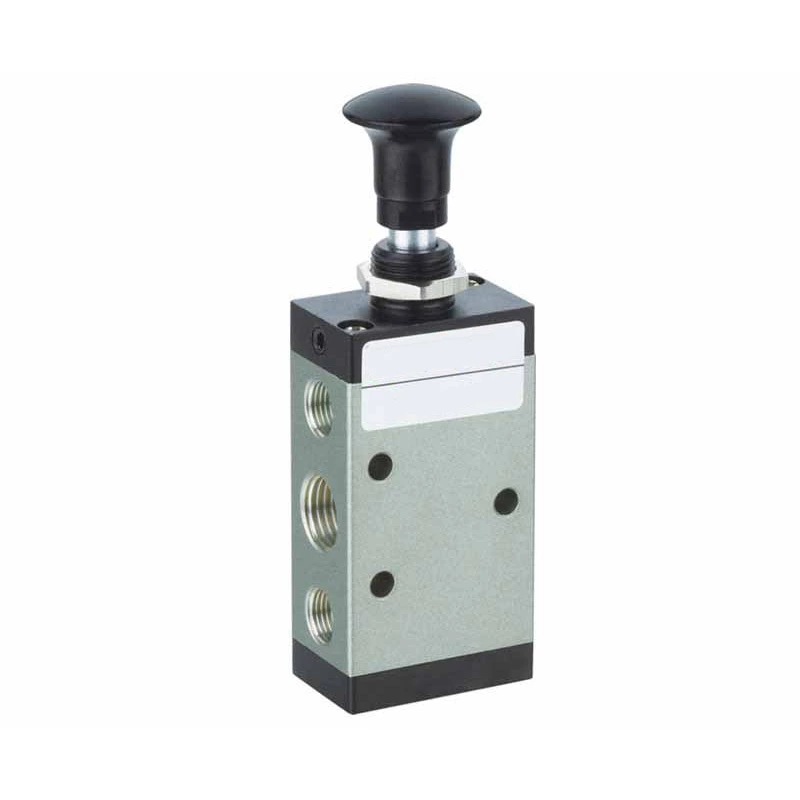

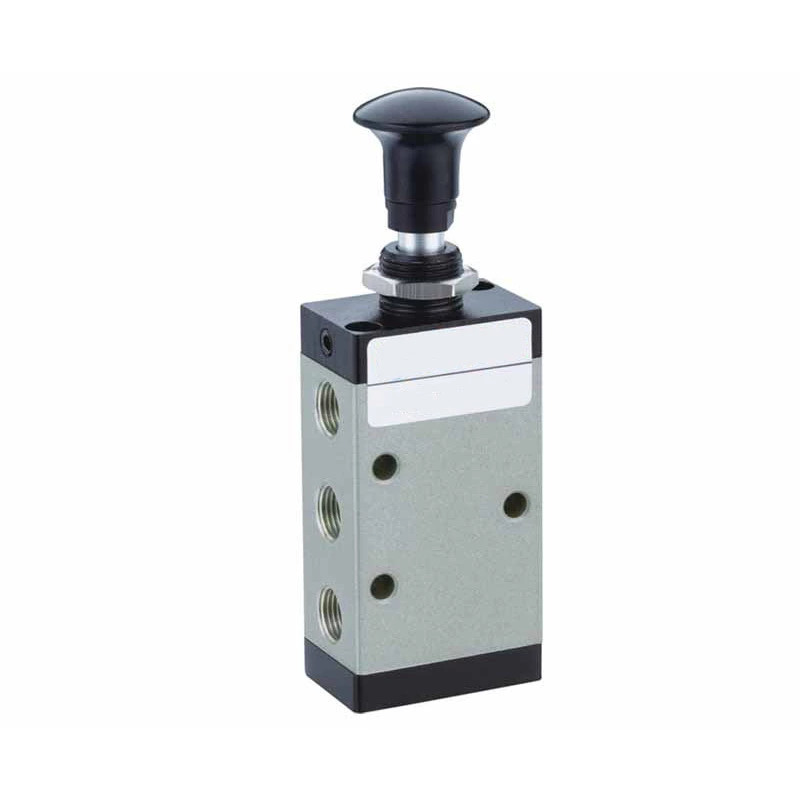

4R/3R Series Hand-Draw Valve
| ●Working Medium | Compresses Air |
| ●Working-pressure Range | 0-1.0MPa |
| ●Operating Temperature Range | -5-60℃ |
| ●Operating Method | Direct Action Type |
| ●Lubrication | Not Required |

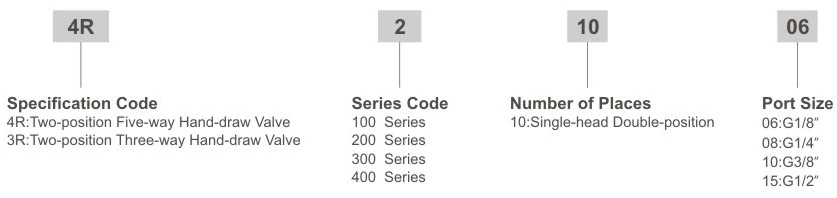

Ordering Code
Specification
| Model | 4R110-06 | 4R210-08 | 4R310-10 | 4R410-15 | 3R110-06 | 3R210-08 | 3R310-10 | 3R410-15 |
| Working Medium | Compresses Air | |||||||
| Position and Way No. | Two-position Five-way | Two-position Three-way | ||||||
| Joint Pipe Bore | G1/8” | G1/4" | G3/8" | G1/2” | G1/8" | G1/4" | G3/8" | G1/2” |
| Working-pressure Range | 0-1.0MPa | |||||||
| Operating Temperature Range | -5-60°C | |||||||
| Operating Method | Direct Action Type | |||||||
| Lubrication | Not Required | |||||||

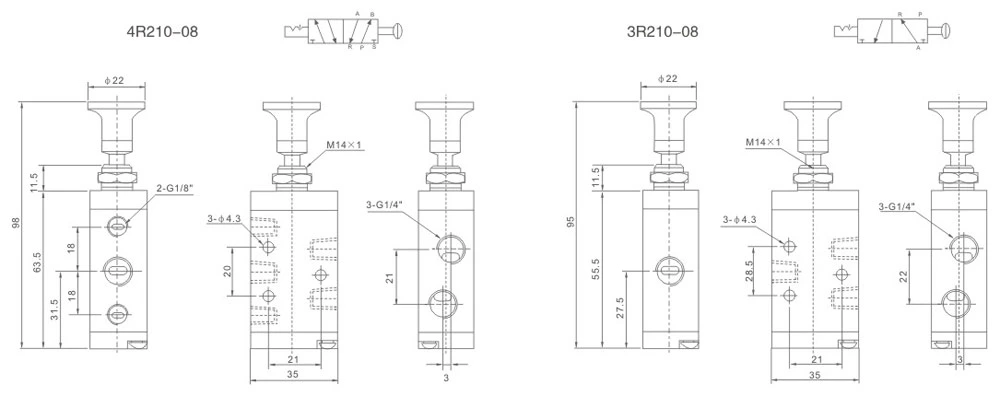

Overall Dimensions
