3V1 Series Solenoid Valve
| ●Working Medium | 40 Micron Filtered Air |
| ●Motion Pattern | Direct Drive Type |
| ●Ambient Temperature | -10-+60℃ |
| ●Gas Temperature | 5-60°C |
| ●Air Outlet Diameter | 1.0mm |
| ●Lubrication | Not Necessary |

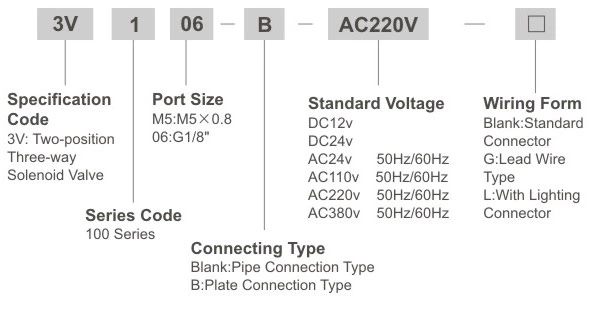

Ordering Code
Specification
| Model | 3V1-M5 | 3V1-06 |
| Working Medium | 40 Micron Filtered Air | |
| Motion Pattern | Direct Drive Type | |
| Joint Pipe Bore | M5 | 1/8" |
| Ambient Temperature | -10-+60°C | |
| Gas Temperature | 5-60°C | |
| Air Outlet Diameter | 1.0mm | |
| Lubrication | Not Necessary | |
| Working-Pressure | 0-0.8MPa | |
| Max.Pressure Resistance | 1.2MPa | |
| Power Consumption | AC:4.5VA DC:3.0W | |
| Protect Class | IP65 | |
| Power Connection Form | Gorl | |
| Material of Body | Aluminum alloy | |
| Highest Action Frequency | 10Cycle / Sec | |
| Insulation | F Class | |
| Voltage Range | ±10% | |
| Shortest Excitartion Time | 0.05 Second | |

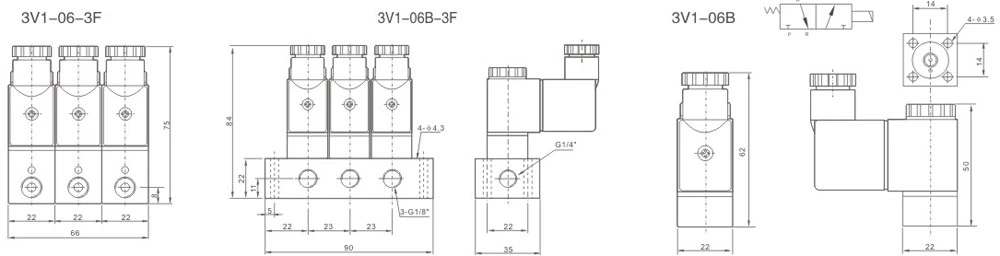

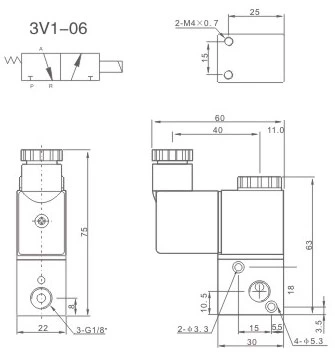

Overall Dimensions
