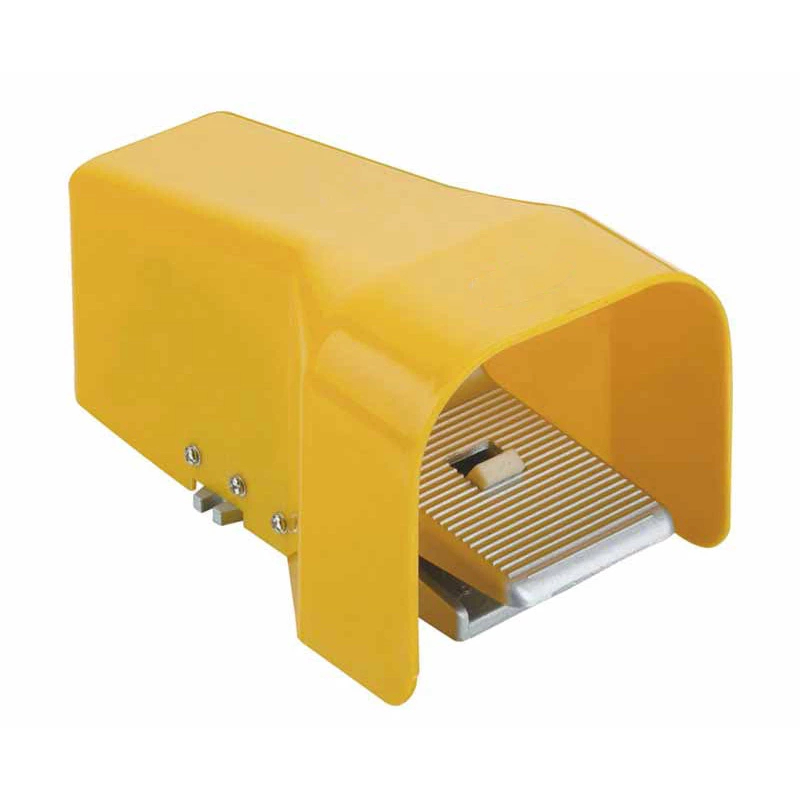

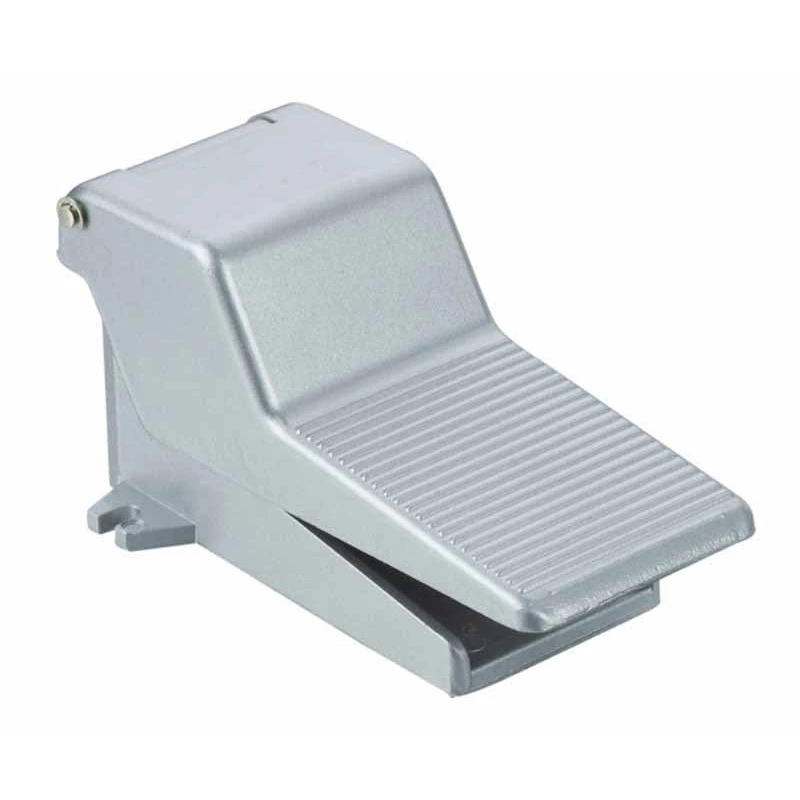

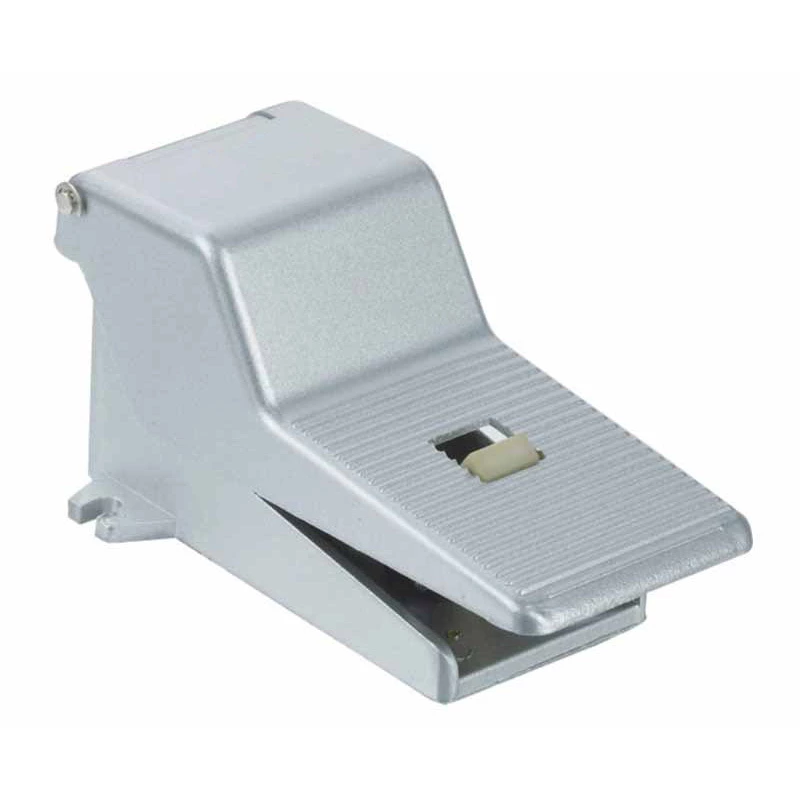

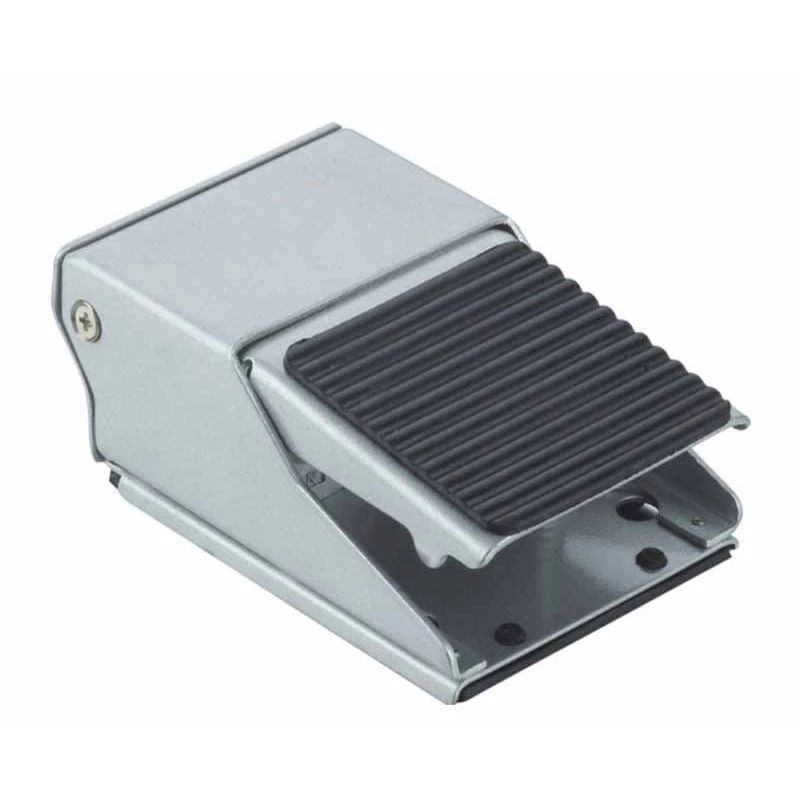

4F/FV Series Foot Valve
| ●Working Medium | 40 Micron Filtered Air |
| ●Motion Patten | Direct Drive Type |
| ●Working-pressure Range | 0.15-0.9MPa |
| ●Operating Temperature Range | 0-60℃ |

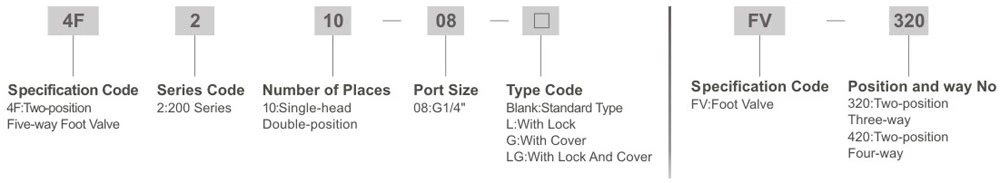

Ordering Code
Specification
| Model | 4F210-06 | 4F210-08L | 4F210-08G | 4F210 08LG | FV420 | FV320 |
| Working Medium | 40 Micron Filtered Air | |||||
| Position and Way Number | Two-position Five-way | Two-position Four-way | Two-position Three-way | |||
| Motion Patten | Direct Drive Type | |||||
| Port Size | Air Inlet=Air Outlet=Exhaust=G1/4" | Air Inlet=Air Outlet=G1/4" Exhaust=G1/8" | ||||
| Working- pressure Range | 0.15-0.9MPa | |||||
| Operating Temperature Range | 0-60℃ | |||||

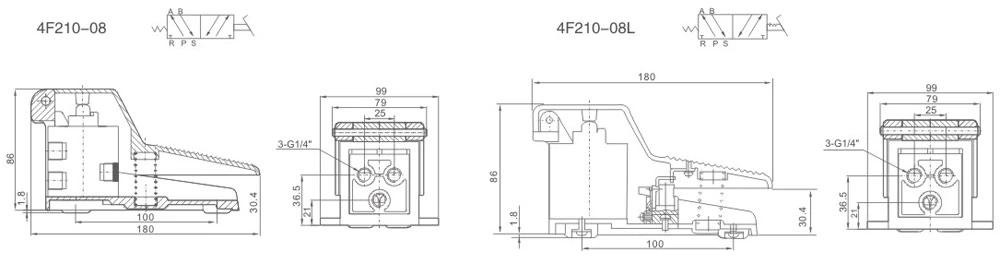

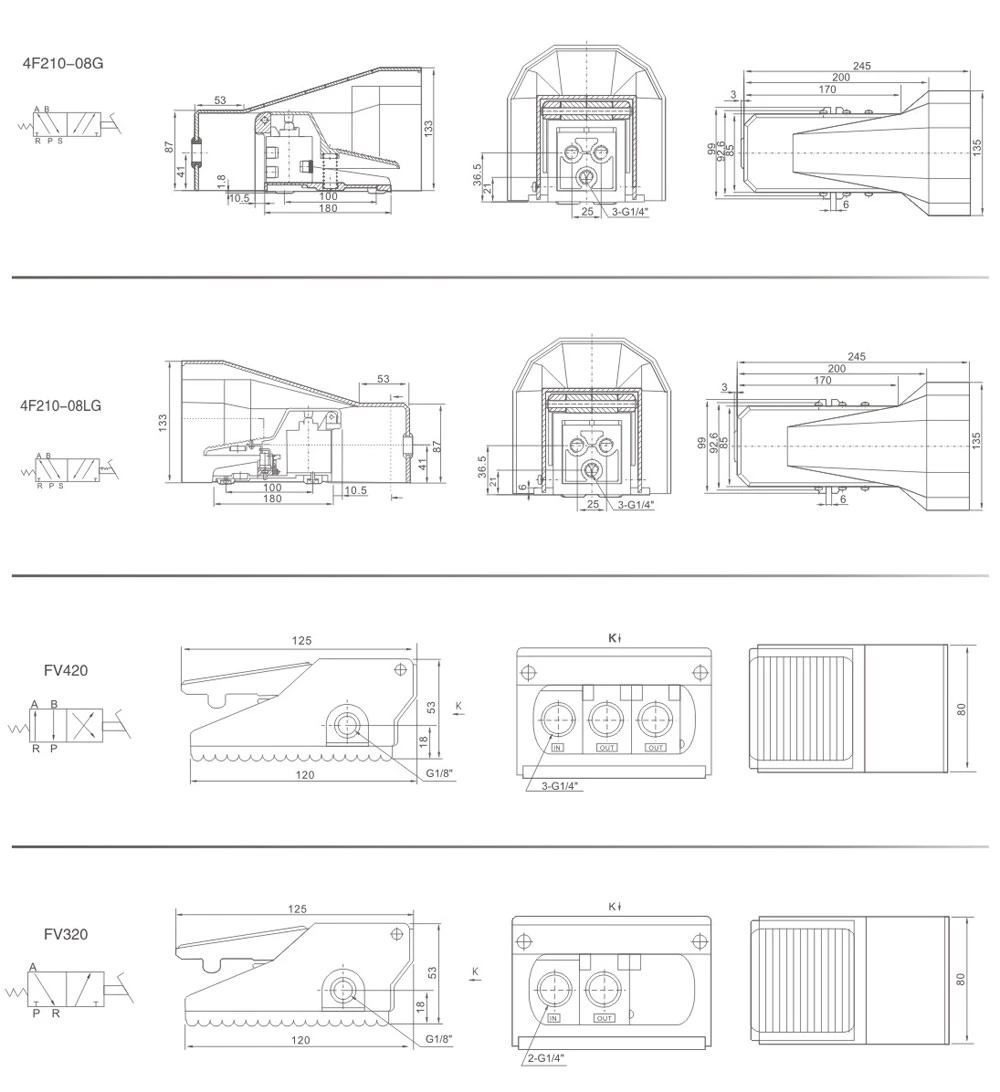

Overall Dimensions
