Pneumatic Tube Fittings With G Thread(O-Ring)
One-Touch push-to-connect configuration allows an instant tubing connection.Smooth-Edge release sleeve design facilitates a quick tubing disconnection.

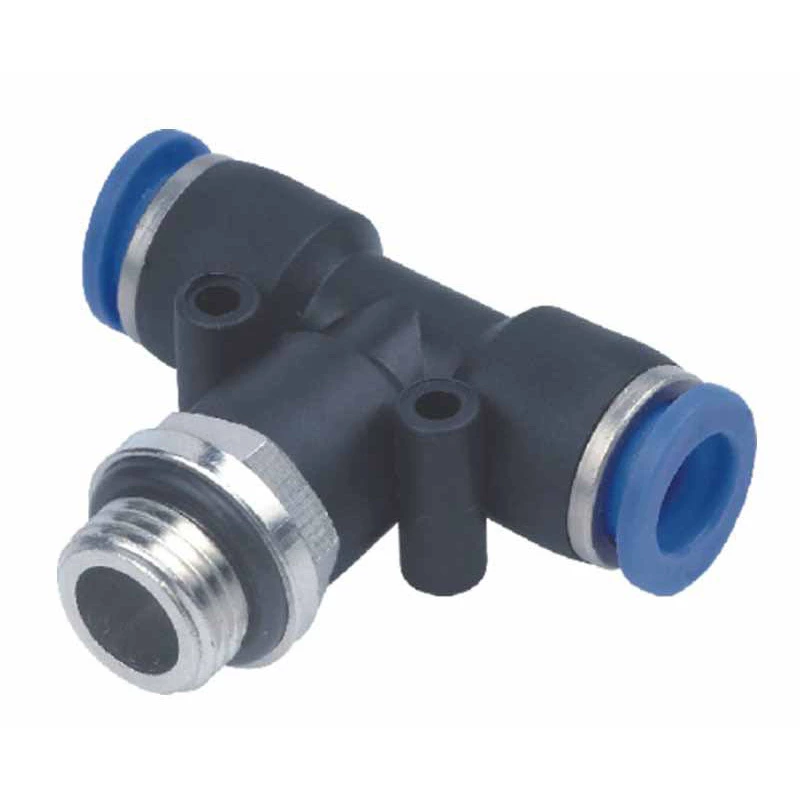

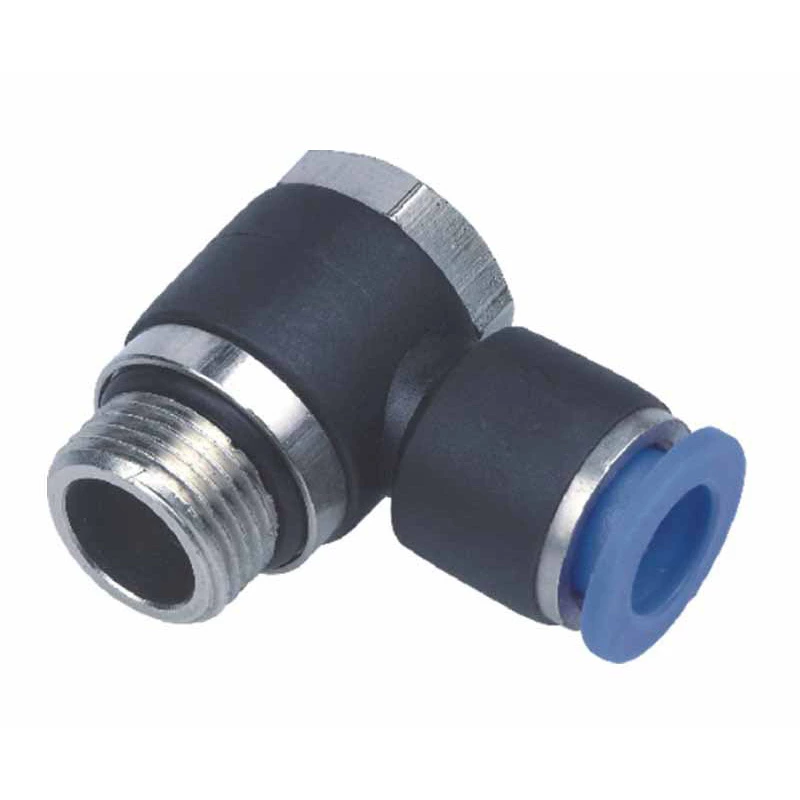

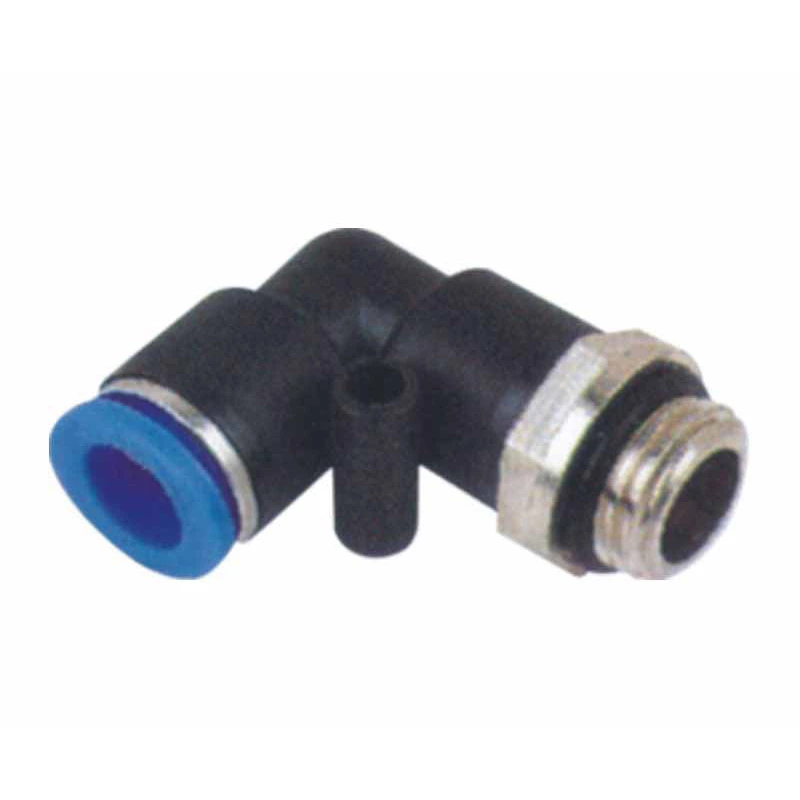

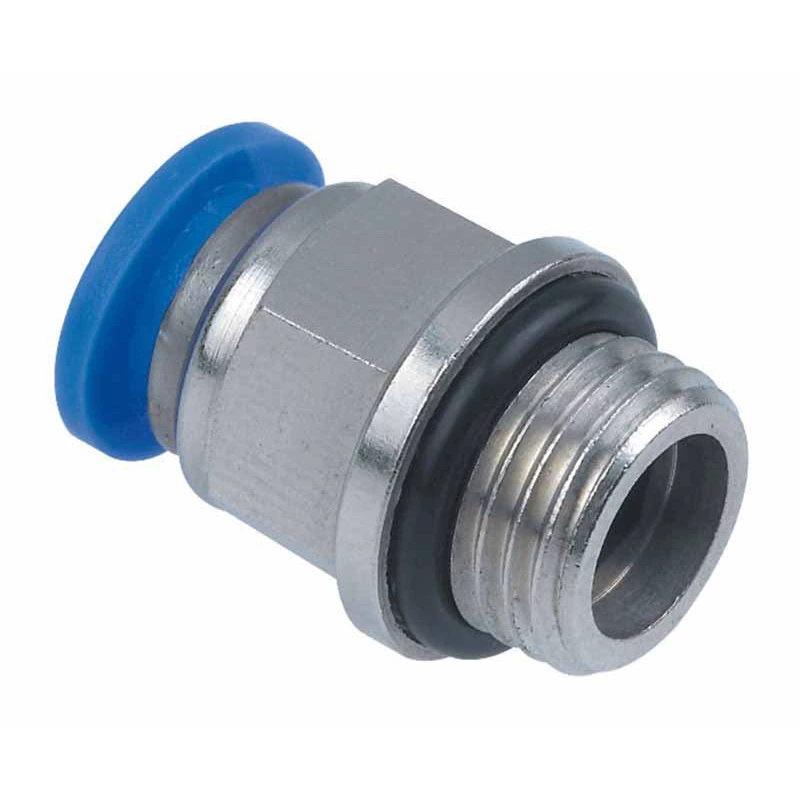

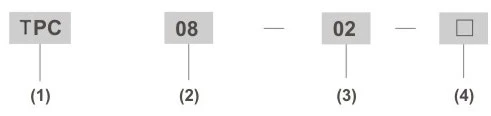

Ordering Code
Specification
| Fliud Type | Air,Vacuum |
| Operating Pressure | 0-10.2Kgf/cm²(0-1.0Mpa) |
| Negative Pressure | -750mm Hg(10Torr) |
| Operating Temperature Range | 0-60℃ |
| Tube Material | Nylon and Polyurethane |
(1)Model Type
(2)Tube Outer Diameter(ΦD)
| Metric Tube | Inch Tube | ||||||||||
| Code | 04 | 06 | 08 | 10 | 12 | 14 | 16 | 1/4" | 5/16" | 3/8" | □ |
| Φ D | 4mm | 6mm | 8mm | 10mm | 12mm | 14mm | 16mm | 1/4" | 5/16" | 3/8" | □ |
(4)Body Color Code
NO Code:Black Color C:Gery Color
Taper Pipe Thread
| R(PT)Thread | ||||
| Code | 01 | 02 | 03 | 04 |
| Size | R1/8" | R1/4" | R3/8" | R1/2" |
| C(PF)Thread | ||||
| Code | G01 | G02 | G03 | G04 |
| Size | G1/8” | G1/4" | G3/8" | R1/2" |
| NPT Thread | ||||
| Code | N1 | N2 | N3 | N4 |
| Size | NTP1/8" | NTP1/4" | NPT3/8" | NPT1/2" |
Other info
| TPC-G |
|
TPL-G |
|
||||||||||||||||||
 |
 |
| TPB-G |
|
TPD-G |
|
||||||||||||||||||
 |
 |
| TPLH-G |
|
TPLL-G |
|
||||||||||||||||||||||||
 |
 |
| TPX-G |
|
TPKD-G |
|
||||||||||||||||||||||
 |
 |
| TPH-G |
|
TPHF-G |
|
||||||||||||||||||||
 |
 |
| TPCF-G |
|
TPLF-G |
|
||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||||||||||||||||||||||||||||
| TPOC-G |
|
TPXT-G |
|
||||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||||||
