Name: Pneumatic Tube Fittings
Brand: Tengyu
SKU: 00045
Rating: 4.8 (285 reviews)

Fliud Type	Air，Vacuum
Operating Pressure	0-10.2Kgf/cm²(0-1.0Mpa)
Negative Pressure	-750mm Hg(10Torr)
Operating Temperature Range	0-60°C
Tube Material	Nylon and Polyurethane

Metric Tube								Inch Tube
Code	04	06	08	10	12	14	16	1/4"	5/16"	3/8"	□
ΦD	4mm	6mm	8mm	10mm	12mm	14mm	16mm	1/4"	5/16"	3/8"	□

R(PT)Thread
Code	01	02	03	04
Size	R1/8"	R1/4"	R3/8"	R1/2"

G(PF)Thread
Code	G01	G02	G03	G04
Size	R1/8"	R1/4"	R3/8"	R1/2"

NPT Thread
Code	N1	N2	N3	N4
Size	NTP1/8"	NTP1/4"	NPT3/8"	NPT1/2"

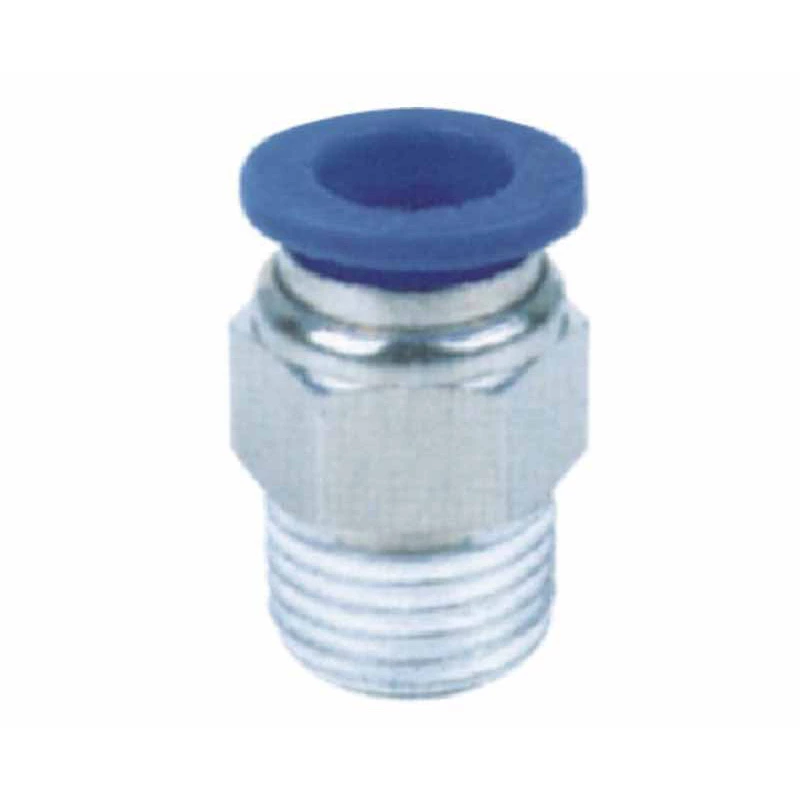

TPC

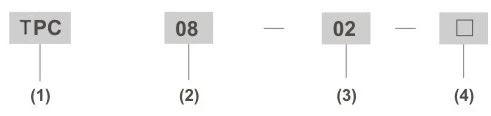

MODEL(Φ D-T)
Tube(Metric)-Thread(R)	Tube(Inch)-Thread(R)	Tube(Inch)-Thread(NPT)
TPC04-M5 TPC06-04 TPC12-02	TPC1/4-01 TPC3/8-04	TPC5/32-U TPC1/4-N2 TPC1/2-N2
TPC04-M6 TPC08-01 TPC12-03	TPC1/4-02 TPC1/2-02	TPC5/32-N1 TPC1/4-N3 TPC1/2-N3
TPC04-01 TPC08-02 TPC12-04	TPC1/4-03 TPC1/2-03	TPC5/32-N2 TPC5/16-N1 TPC1/2-N4
TPC04-02 TPC08-03 TPC14-03	TPC5/16-01 TPC1/2-04	TPC3/16-U TPC5/16-N2
TPC06-M5 TPC08-04 TPC14-04	TPC5/16-02	TPC3/16-N1 TPC5/16-N3
TPC06-M6 TPC10-01 TPC16-03	TPC5/16-03	TPC3/16-N2 TPC3/8-N1
TPC06-01 TPC10-02 TPC16-04	TPC3/8-01	TPC3/16-N3 TPC3/8-N2
TPC06-02 TPC10-03	TPC3/8-02	TPC1/4-U TPC3/8-N3
TPC06-03 TPC10-04	TPC3/8-03	TPC1/4-N1 TPC3/8-N4

TPOC

MODEL(Φ D-T)
Tube(Metric)-Thread(R)	Tube(Inch)-Thread(R)	Tube(Inch)-Thread(NPT)
TPOC04-M5 TPOC06-03 TPOC10-04	TPOC1/4-01	TPOC5/32-U TPOC3/8-N2
TPOC04-M6 TPOC08-01 TPOC12-02	TPOC1/4-02	TPOC5/32-N1 TPOC3/8-N3
TPOC04-01 TPOC08-02 TPOC12-03	TPOC5/16-01	TPOC1/4-U TPOC3/8-N4
TPOC04-02 TPOC08-03 TPOC12-04	TPOC5/16-02	TPOC1/4-N1 TPOC1/2-N2
TPOC06-M5 TPOC08-04 TPOC14-03	TPOC5/16-03	TPOC1/4-N2 TPOC1/2-N3
TPOC06-M6 TPOC10-01 TPOC14-04	TPOC3/8-02	TPOC5/16-N1 TPOC1/2-N4
TPOC06-01 TPOC10-02 TPOC16-03	TPOC3/8-03	TPOC5/16-N2
TPOC06-02 TPOC10-03 TPOC16-04	TPOC3/8-04	TPOC5/16-N3

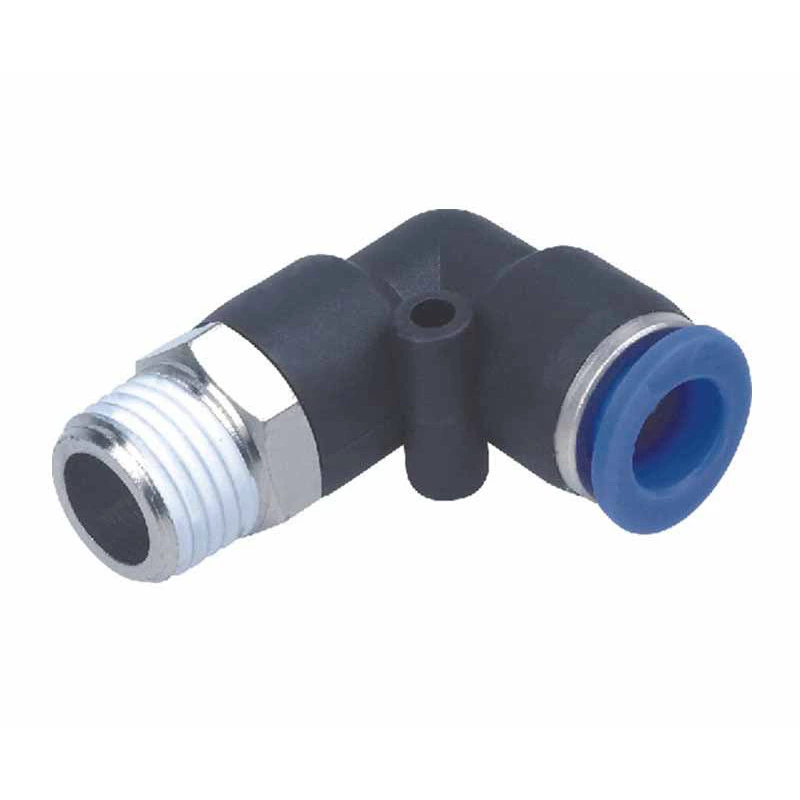

TPL

MODEL(Φ D-T)
Tube(Metric)-Thread(R)	Tube(Inch)-Thread(R)	Tube(Inch)-Thread(NPT)
TPL04-M5 TPL06-04 TPL12-02	TPL1/4-01 TPL3/8-04	TPL5/32-U TPL1/4-N2 TPL1/2-N2
TPL04-M6 TPL08-01 TPL12-03	TPL1/4-02 TPL1/2-02	TPL5/32-N1 TPL1/4-N3 TPL1/2-N3
TPL04-01 TPL08-02 TPL12-04	TPL1/4-03 TPL1/2-03	TPL5/32-N2 TPL5/16-N1 TPL1/2-N4
TPL04-02 TPL08-03 TPL14-03	TPL5/16-01 TPL1/2-04	TPL3/16-U TPL5/16-N2
TPL06-M5 TPL08-04 TPL14-04	TPL5/16-02	TPL3/16-N1 TPL5/16-N3
TPL06-M6 TPL10-01 TPL16-03	TPL5/16-03	TPL3/16-N2 TPL3/8-N1
TPL06-01 TPL10-02 TPL16-04	TPL3/8-01	TPL3/16-N3 TPL3/8-N2
TPL06-02 TPL10-03	TPL3/8-02	TPL1/4-U TPL3/8-N3
TPL06-03 TPL10-04	TPL3/8-03	TPL1/4-N1 TPL3/8-N4

TPLL

MODEL(Φ D-T)
Tube(Metric)-Thread(R)	Tube(Inch)-Thread(R)	Tube(Inch)-Thread(NPT)
TPLL04-M5 TPLL06-04 TPLL12-02	TPLL1/4-01	TPLL5/32-U TPLL5/16-N2
TPLL04-M6 TPLL08-01 TPLL12-03	TPLL1/4-02	TPLL5/32-N1 TPLL5/16-N3
TPLL04-01 TPLL08-02 TPLL12-04	TPLL5/16-02	TPLL3/16-N1 TPLL3/8-N2
TPLL04-02 TPLL08-03 TPLL14-03	TPLL3/8-02	TPLL3/16-N2 TPLL3/8-N3
TPLL06-M5 TPLL08-04 TPLL14-04	TPLL3/8-03	TPLL3/16-N3 TPLL3/8-N4
TPLL06-M6 TPLL10-01 TPLL16-03		TPLL1/4-N1 TPLL1/2-N2
TPLL06-01 TPLL10-02 TPLL16-04		TPLL1/4-N2 TPLL1/2-N3
TPLL06-02 TPLL10-03		TPLL1/4-N3 TPLL1/2-N4
TPLL06-03 TPLL10-04		TPLL5/16-N1

TPLF

MODEL(Φ D-T)
Tube(Metric)-Thread(RC)	Tube(Inch)-Thread(NPT)
TPLF04-M5 TPLF08-01 TPLF12-03	TPLF5/32-N1 TPLF3/8-N3
TPLF04-M6 TPLF08-02 TPLF12-04	TPLF3/16-N1 TPLF1/2-N3
TPLF04-01 TPLF08-03 TPLF14-03	TPLF3/16-N2 TPLF1/2-N4
TPLF04-02 TPLF08-04 TPLF14-04	TPLF1/4-N1
TPLF06-M5 TPLF10-01 TPLF16-03	TPLF1/4-N2
TPLF06-M6 TPLF10-02 TPLF16-04	TPLF5/16-N1
TPLF06-01 TPLF10-03	TPLF5/16-N2
TPLF06-02 TPLF10-04	TPLF5/16-N3
TPLF06-03 TPLF12-02	TPLF3/8-N2

TPCF

MODEL(Φ D-T)
Tube(Metric)- Thread(RC)	Tube(lnch)- Thread(R)	Tube(Inch)- Thread(NPT)
TPCF04-01 TPCF10-01	TPCF1/4-01	TPCF5/32-N1 TPCF3/8-N2
TPCF04-02 TPCF10-02	TPCF1/4-02	TPCF5/32-N TPCF3/8-N3
TPCF06-01 TPCF10-03	TPCF5/16-01	TPCF3/16-N1 TPCF1/2-N2
TPCF06-02 TPCF10-04	TPCF5/16-02	TPCF3/16-N2 TPCF1/2-N3
TPCF06-03 TPCF12-02	TPCF3/8-02	TPCF1/4-N1
TPCF08-01 TPCF12-03	TPCF3/8-03	TPCF1/4-N2
TPCF08-02 TPCF12-04		TPCF5/16-N1
TPCF08-03 TPCF16-03		TPCF5/16-N2
TPCF08-04 TPCF16-04		TPCF5/16-N3

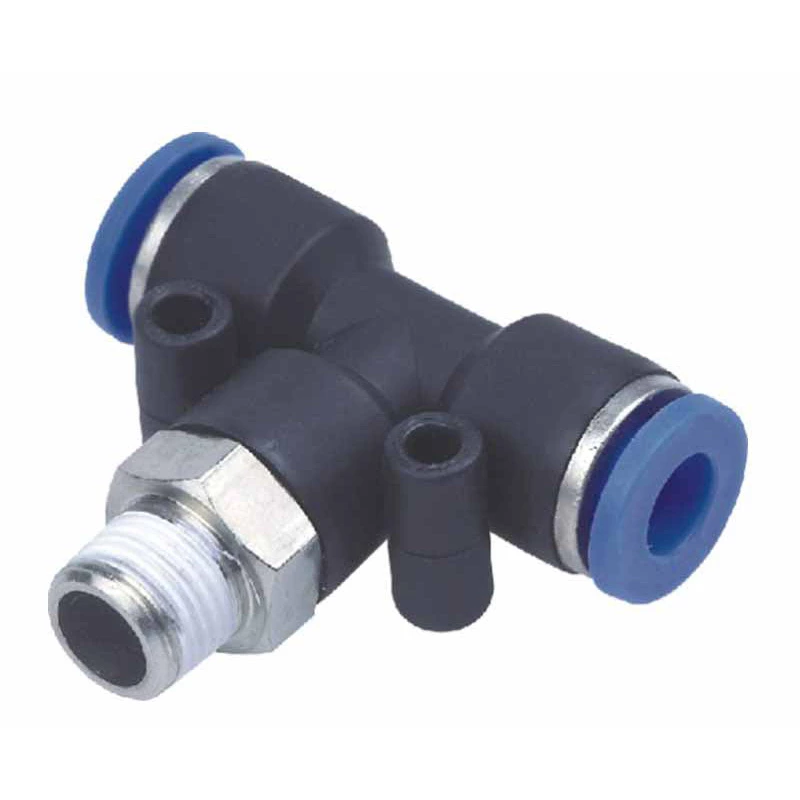

TPB

MODEL(Φ D-T)
Tube(Metric)- Thread(R)	Tube(lnch)- Thread(R)	Tube(Inch)- Thread(NPT)
TPB04-M5 TPB06-04 TPB12-02	TPB1/4-01 TPB3/8-04	TPB5/32-U TPB1/4-N2 TPB1/2-N2
TPB04-M6 TPB08-01 TPB12-03	TPB1/4-02 TPB1/2-02	TPB5/32-N1 TPB1/4-N3 TPB1/2-N3
TPB04-01 TPB08-02 TPB12-04	TPB1/4-03 TPB1/2-03	TPB5/32-N2 TPB5/16-N1 TPB1/2-N4
TPB04-02 TPB08-03 TPB14-03	TPB5/16-01 TPB1/2-04	TPB3/16-U TPB5/16-N2
TPB06-M5 TPB08-04 TPB14-04	TPB5/16-02	TPB3/16-N1 TPB5/16-N3
TPB06-M6 TPB10-01 TPB16-03	TPB5/16-03	TPB3/16-N2 TPB3/8-N1
TPB06-01 TPB10-02 TPB16-04	TPB3/8-01	TPB3/16-N3 TPB3/8-N2
TPB06-02 TPB10-03	TPB3/8-02	TPB1/4-U TPB3/8-N3
TPB06-03 TPB10-04	TPB3/8-03	TPB1/4-N1 TPB3/8-N4

TPD

MODEL(Φ D-T)
Tube(Metric)- Thread(R)	Tube(lnch)- Thread(R)	Tube(Inch)- Thread(NPT)
TPD04-M5 TPD06-04 TPD12-02	TPD1/4-01 TPD3/8-04	TPD5/32-U TPD1/4-N2 TPD1/2-N2
TPD04-M6 TPD08-01 TPD12-03	TPD1/4-02 TPD1/2-02	TPD5/32-N1 TPD1/4-N3 TPD1/2-N3
TPD04-04 TPD08-02 TPD12-04	TPD1/4-03 TPD1/2-03	TPD5/32-N2 TPD5/16-N1 TPD1/2-N4
TPD04-02 TPD08-03 TPD14-03	TPD5/16-01 TPD1/2-04	TPD3/16-U TPD5/16-N2
TPD06-M5 TPD08-04 TPD14-04	TPD5/16-02	TPD3/16-N1 TPD5/16-N3
TPD06-M6 TPD10-01 TPD16-03	TPD5/16-03	TPD3/16-N2 TPD3/8-N1
TPD06-01 TPD10-02 TPD16-04	TPD3/8-01	TPD3/16-N3 TPD3/8-N2
TPD06-02 TPD10-03	TPD3/8-02	TPD1/4-U TPD3/8-N3
TPD06-03 TPD10-04	TPD3/8-03	TPD1/4-N1 TPD3/8-N4

TPX

MODEL(Φ D-T)
Tube(Metric)- Thread(R)	Tube(lnch)- Thread(R)	Tube(Inch)- Thread(NPT)
TPX04-M5 TPX06-04 TPX12-02	TPX1/4-01 TPX3/8-04	TPX5/32-U TPX1/4-N2 TPX1/2-N2
TPX04-M6 TPX08-01 TPX12-03	TPX1/4-02 TPX1/2-02	TPX5/32-N1 TPX1/4-N3 TPX1/2-N3
TPX04-01 TPX08-02 TPX12-04	TPX1/4-03 TPX1/2-03	TPX5/32-N2 TPX5/16-N1 TPX1/2-N4
TPX04-02 TPX08-03	TPX5/16-01 TPX1/2-04	TPX3/16-U TPX5/16-N2
TPX06-M5 TPX08-04	TPX5/16-02	TPX3/16-N1 TPX5/16-N3
TPX06-M6 TPX10-01	TPX5/16-03	TPX3/16-N2 TPX3/8-N1
TPX06-01 TPX10-02	TPX3/8-01	TPX3/16-N3 TPX3/8-N2
TPX06-02 TPX10-03	TPX3/8-02	TPX1/4-U TPX3/8-N3
TPX06-03 TPX10-04	TPX3/8-03	TPX1/4-N1 TPX3/8-N4

TPKB

MODEL(Φ D-T)

Tube(Metric)

TPKB04-01

TPKB04-02

TPKB06-01

TPKB06-02

TPKB06-03

TPKB08-01

TPKB08-02

TPKB08-03

TPKD

MODEL(Φ D-T)
Tube(Metric)	Tube(lnch)
TPKD06-04-01	TPKD3/16-5/32-N1
TPKD08-04-02	TPKD1/4-5/32-N1
TPKD08-06-02	TPKD5/16-5/32-N2
TPKD10-08-03	TPKD5/16-1/4-N2
	TPKD3/8-5/16-N3

TPH

MODEL(Φ D-T)
Tube(Metric)- Thread(R)	Tube(lnch)- Thread(R)	Tube(Inch)- Thread(NPT)
TPH04-M5 TPH08-01 TPH12-04	TPH1/4-05	TPH5/32-U TPH5/16-N3
TPH04-M6 TPH08-02	TPH1/4-01	TPH5/32-N1 TPH3/8-N2
TPH04-01 TPH08-03	TPH1/4-02	TPH3/16-U TPH3/8-N3
TPH04-02 TPH08-04	TPH5/16-01	TPH3/16-N1 TPH1/2-N3
TPH06-M5 TPH10-02	TPH5/16-02	TPH3/16-N2 TPH1/4-N4
TPH06-M6 TPH10-03	TPH5/16-03	TPH1/4-N1
TPH06-01 TPH10-04	TPH3/8-02	TPH1/4-N2
TPH06-02 TPH12-02	TPH3/8-03	TPH5/16-N1
TPH06-03 TPH12-03		TPH5/16-N1

TPHF

MODEL(Φ D-T)
Tube(Metric)- Thread(R)	Tube(lnch)- Thread(R)	Tube(Inch)- Thread(NPT)
TPHF04-M5 TPHF08-01 TPHF12-04	TPHF1/4-M5	TPHF5/32-U TPHF5/16-N3
TPHF04-M6 TPHF08-02	TPHF1/4-01	TPHF5/32-N1 TPHF3/8-N2
TPHF04-01 TPHF08-03	TPHF1/4-02	TPHF3/16-U TPHF3/8-N3
TPHF04-02 TPHF08-04	TPHF5/16-01	TPHF3/16-N1 TPHF1/2-N3
TPHF06-M5 TPHF10-02	TPHF5/16-02	TPHF3/16-N2 TPHF1/2-N4
TPHF06-M6 TPHF10-03	TPHF5/16-03	TPHF1/4-N1
TPHF06-01 TPHF10-04	TPHF3/8-02	TPHF1/4-N2
TPHF06-02 TPHF12-02	TPHF3/8-03	TPHF5/16-N1
TPHF06-03 TPHF12-03		TPHF5/16-N2

TPMF

MODEL(Φ D-T)
Tube(Metric)- Thread(RC)	Tube(Inch)- Thread(NPT)
TPMF04-01 TPMF10-01	TPMF5/32-N1 TPMF3/8-N3
TPMF04-02 TPMF10-02	TPMF3/16-N1 TPMF1/2-N3
TPMF06-01 TPMF10-03	TPMF3/16-N2 TPMF1/2-N4
TPMF06-02 TPMF10-04	TPMF1/4-N1
TPMF06-03 TPMF12-02	TPMF1/4-N2
TPMF08-01 TPMF12-03	TPMF5/16-N1
TPMF08-02 TPMF12-04	TPMF5/16-N2
TPMF08-03 TPMF14-04	TPMF5/16-N3
TPMF08-04 TPMF16-04	TPMF3/8-N2

TPGJ

MODEL(Φ D1-Φ D2)
Tube(Metric)	Tube(lnch)- Tube(lnch)	Tube(Inch)- Thread(NPT)
TPGJ06-04	TPGJ08-1/4	TPGJ1/4-5/32
TPGJ08-04	TPGJ10-1/4	TPGJ5/16-5/32
TPGJ08-06	TPGJ10-5/16	TPGJ5/16-1/4
TPGJ10-06	TPGJ12-1/4	TPGJ3/8-1/4
TPGJ10-08	TPGJ12-5/16	TPGJ3/8-5/16
TPGJ12-06		TPGJ1/2-1/4
TPGJ12-08		TPGJ1/2-5/16
TPGJ12-10		TPGJ1/2-3/8

TPLJ

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPLJ04	TPLJ5/32
TPLJ06	TPLJ3/16
TPLJ08	TPLJ1/4
TPLJ10	TPLJ5/16
TPLJ12	TPLJ3/8
	TPLJ1/2

TPLGJ

MODEL(Φ D1-Φ D2)
Tube(Metric)	Tube(lnch)
TPLGJ06-04	TPLGJ3/16-5/32
TPLGJ08-06	TPLGJ1/4-5/32
TPLGJ10-08	TPLGJ1/4-3/16
TPLGJ12-10	TPLGJ5/16-1/4
	TPLGJ3/8-5/16
	TPLGJ1/2-3/8

TPYJ

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPYJ04	TPYJ5/32
TPYJ06	TPYJ3/16
TPYJ08	TPYJ1/4
TPYJ10	TPYJ5/16
TPYJ12	TPYJ3/8
	TPYJ1/2

TPWJ

MODEL(Φ D1-Φ D2)
Tube(Metric)	Tube(lnch)
TPWJ06-04	TPWJ1/4-5/32
TPWJ08-06	TPWJ5/16-1/4
TPWJ10-08	TPWJ3/8-5/16
TPWJ12-10	TPWJ1/2-3/8

TPIJ

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPIJ04	TPIJ5/32
TPIJ06	TPIJ3/16
TPIJ08	TPIJ1/4
TPIJ10	TPIJ5/16
TPIJ12	TPIJ3/8
TPIJ16	TPIJ1/2

TPKJ

MODEL(Φ D1-Φ D2)
Tube(Metric)	Tube(lnch)
TPIJ06-04	TPIJ3/16-5/32
TPIJ08-04	TPIJ1/4-5/32
TPIJ08-06	TPIJ5/16-5/32
TPIJ10-06	TPIJ5/16-3/16
TPIJ10-08	TPIJ5/16-1/4
	TPIJ3/8-1/4
	TPIJ3/8-5/16

TPDJ

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPDJ04	TPDJ08-06
TPDJ06	TPDJ10-08
TPDJ08	TPDJ12-10
TPDJ10
TPDJ12
TPDJ06-04

TPSJ

MODEL(Φ D1-Φ D2)
Tube(Metric)	Tube(lnch)
TPSJ06-04	TPSJ1/4-5/32
TPSJ08-06	TPSJ5-16-1/4
TPSJ10-08	TPSJ3/8-5-16
TPSJ12-10	TPSJ1-2-3/8

TPTJ

MODEL(Φ D1-Φ D2)
Tube(Metric)	Tube(lnch)
TPTJ06-04	TPTJ1/4-5/32
TPTJ08-06	TPTJ5/16-1/4
TPTJ10-08	TPTJ3/8-5/16
TPTJ12-10	TPTJ1/2-3/8

TPP

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPP04	TPP5/32
TPP06	TPP3/16
TPP08	TPP1/4
TPP10	TPP5/16
TPP12	TPP3/8
TPP16	TPP1/2

TPIG

MODEL(Φ D1-Φ D2)
Tube(Metric)	Tube(lnch)
TPIG06-04	TPIG3/16-5/32
TPIG08-06	TPIG1/4-5/32
TPIG10-08	TPIG1/4-3/16
TPIG12-10	TPIG5/16-1/4
TPIG16-12	TPIG3/8-5/16
	TPIG1/2-3/8

TPM

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPM04	TPM5/32
TPM06	TPM3/16
TPM08	TPM1/4
TPM10	TPM5/16
TPM12	TPM3/8
TPM14	TPM1/2
TPM16

TPZA

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPZA04	TPZA5/32
TPZA06	TPZA3/16
TPZA08	TPZA1/4
TPZA10	TPZA5/16
TPZA12	TPZA3/8
	TPZA1/2

TPKG

MODEL(Φ D1-Φ D2)
Tube(Metric)	Tube(lnch)
TPKG06-04	TPKG3/16-5/32
TPKG08-04	TPKG1/4-5/32
TPKG08-06	TPKG5/16-5/32
TPKG10-06	TPKG3/16-3/16
TPKG10-08	TPKG5/16-1/4
	TPKG3/8-1/4
	TPKG3/8-5/16

TPK

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPK04	TPK5/32
TPK06	TPK3/16
TPK08	TPK1/4
	TPK5/16

TPLM

MODEL(Φ D1)
Tube(Metric)
TPLM04
TPLM06
TPLM08
TPLM10
TPLM12

TPHT(2)

MODEL(Φ D-T)
Tube(Metric)-Thread(R)
TPHT04-01(2) TPHT08-04(2)
TPHT04-02(2) TPHT10-01(2)
TPHT06-01(2) TPHT10-02(2)
TPHT06-02(2) TPHT10-03(2)
TPHT06-03(2) TPHT10-04(2)
TPHT08-01(2) TPHT12-02(2)
TPHT08-02(2) TPHT12-03(2)
TPHT08-03(2) TPHT12-04(2)

TPHT(3)

MODEL(Φ D-T)
Tube(Metric)-Thread(R)
TPHT04-01(3) TPHT08-04(3)
TPHT04-02(3) TPHT10-01(3)
TPHT06-01(3) TPHT10-02(3)
TPHT06-02(3) TPHT10-03(3)
TPHT06-03(3) TPHT10-04(3)
TPHT08-01(3) TPHT12-02(3)
TPHT08-02(3) TPHT12-03(3)
TPHT08-03(3) TPHT12-04(3)

TPPF

MODEL(Φ D)
Tube(Metric)
TPPF04
TPPF06
TPPF07
TPPF08
TPPF10
TPPF12

TPU

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPU04	TPU5/32
TPU06	TPU3/16
TPU08	TPU1/4
TPU10	TPU5/16
TPU12	TPU3/8
TPU14	TPU1/2
TPU16

TPV

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPV04	TPV5/32
TPV06	TPV3/16
TPV08	TPV1/4
TPV10	TPV5/16
TPV12	TPV3/8
TPV14	TPV1/2
TPV16

TPE

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPE04	TPE5/32
TPE06	TPE3/16
TPE08	TPE1/4
TPE10	TPE5/16
TPE12	TPE3/8
TPE14	TPE1/2
TPE16

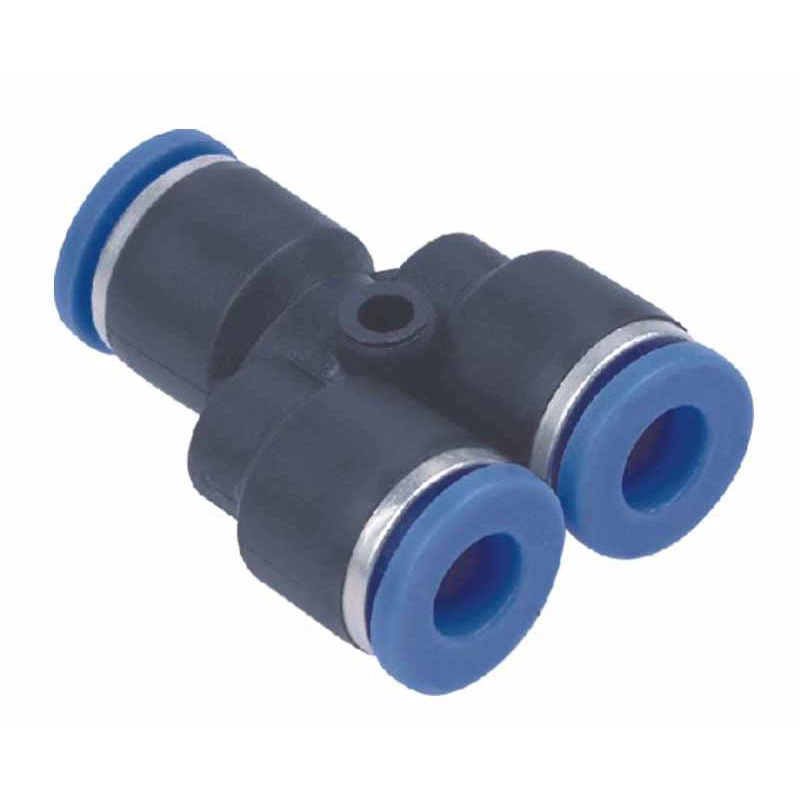

TPY

MODEL(Φ D)
Tube(Metric)	Tube(lnch)
TPY04	TPY5/32
TPY06	TPY3/16
TPY08	TPY1/4
TPY10	TPY5/16
TPY12	TPY3/8
	TPY1/2

TPG

MODEL(Φ D1- Φ D2)
Tube(Metric)	Tube(lnch)
TPG06-04	TPG3/16-5/32
TPG08-04	TPG1/4-5/32
TPG08-06	TPG1/4-3/16
TPG10-06	TPG5/16-1/4
TPG10-08	TPG3/8-5/16
TPG12-10	TPG1/2-3/8
TPG16-12
TPG16-14
