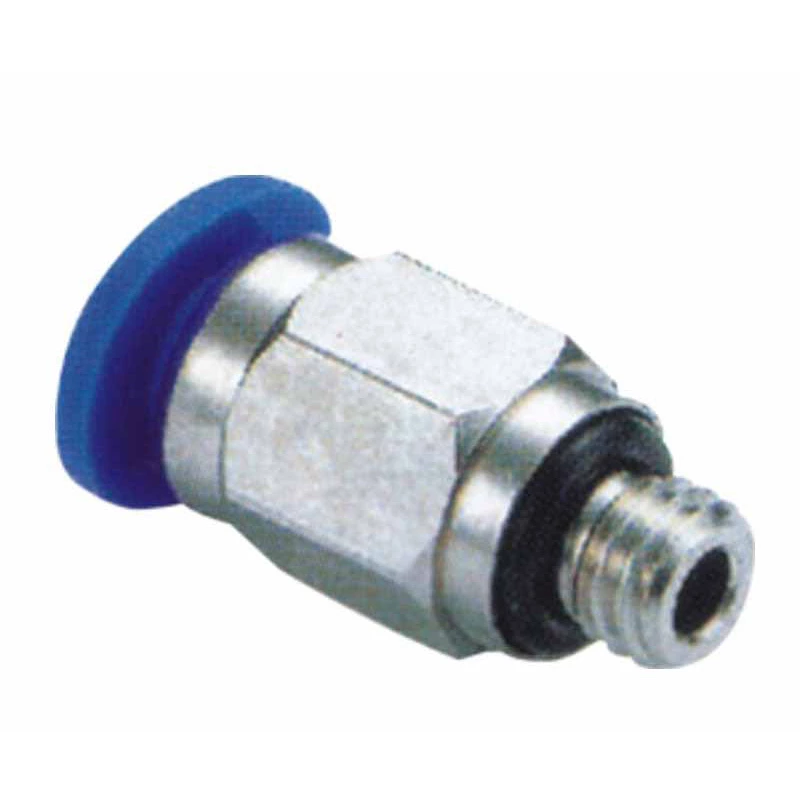

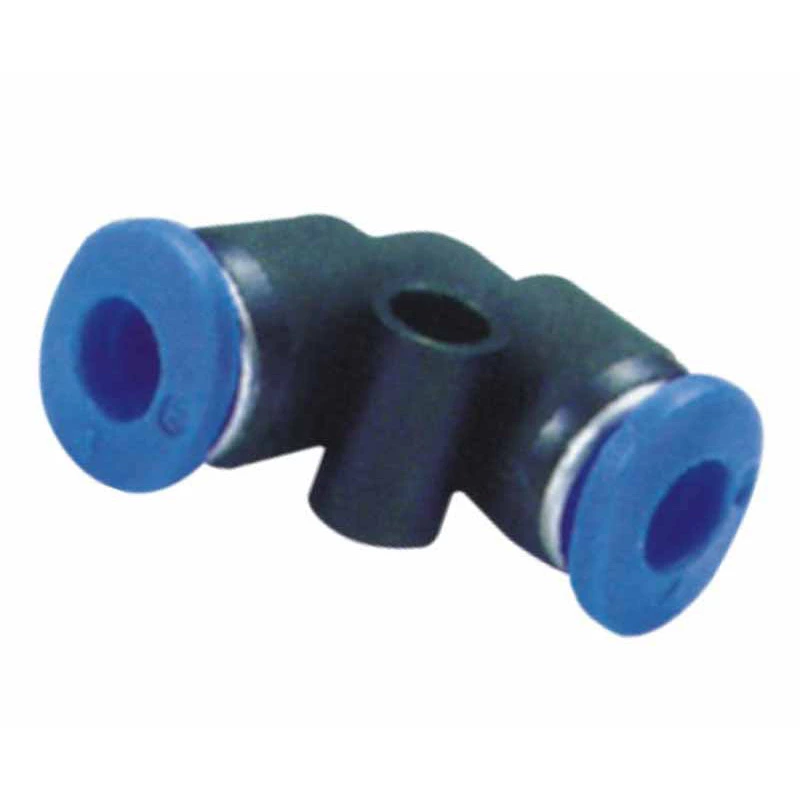

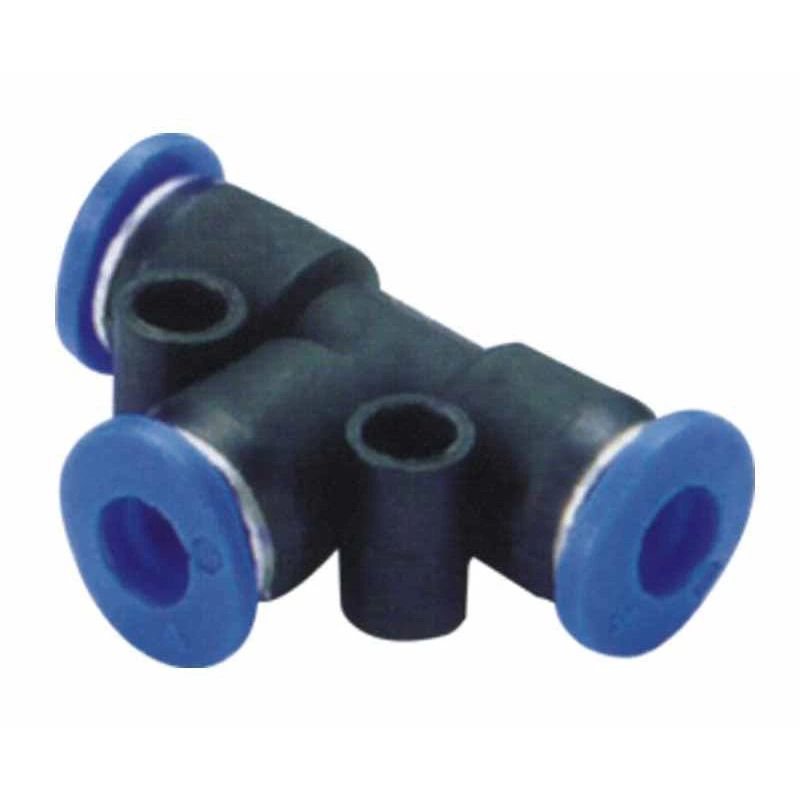

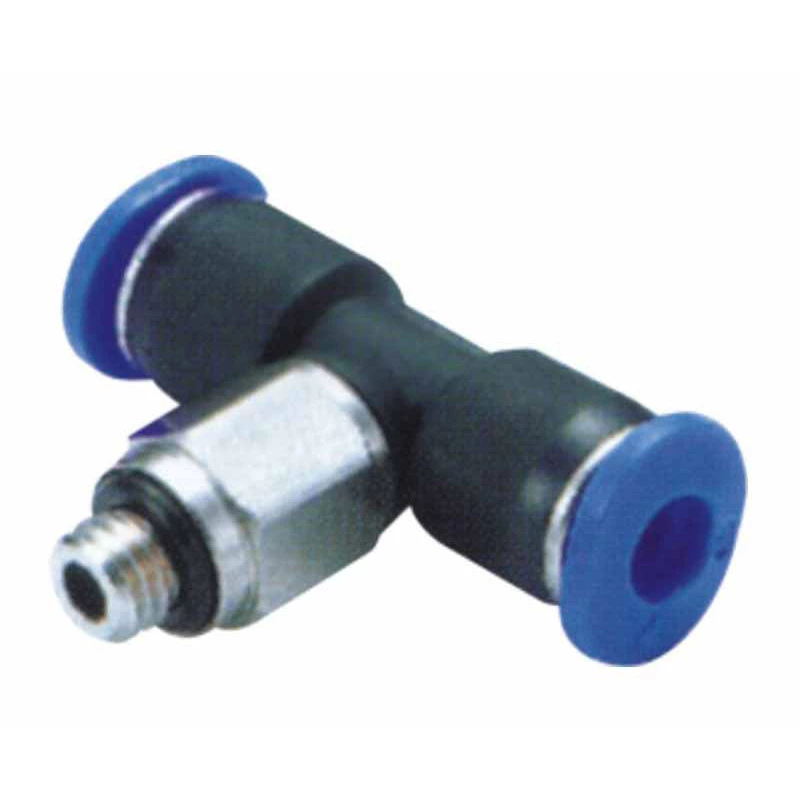

Mini Fittings
Ideal for pneumatic connections specifically for small and compactequipments.
Aesthetically pleasing nickel-plated metalIic standardized feature for alIapplicable compact fittings.
Ordering Code
Specification
| Fliud Type | Air,Vacuum |
| Operating Pressure | 0-10.2Kgf/cm²(0-1.0Mpa) |
| Negative Pressure | -750mm Hg(10Torr) |
| Operating Temperature Range | 0-60°C |
| Tube Material | Nylon and Polyurethane |
(1)Model Type
(2)Tube Outer Diameter(ΦD)
| Metric Size | |||
| Code | 03 | 04 | 06 |
| ΦD | 3mm | 4mm | 6mm |
(3)Thread Type & Size
Metric Size
| Metric Size | |||
| Code | M3 | M5 | M6 |
| ΦD | M3×0.5 | M5×0.8 | M6×1 |
Taper Pipe Thread
| R(PT]Thread | ||
| R(PT]Thread | 01 | G01 |
| ΦD | R1/8" | G1/4” |
(4)Compact Type
Other info
| TPC-C |
|
TPB-C |
|
||||||||||||||||
 |
 |
| TPCF-C |
|
TPD-C |
|
||||||||||||||||
 |
 |
| TPOC-C |
|
TPLL-C |
|
||||||||||||||||
 |
 |
| TPL-C |
|
TPE-C |
|
TPU-C |
|
||||||||||||||||||||||||
 |
 |
 |
| TPY-C |
|
TPUL-C |
|
TPC-G-C |
|
||||||||||||||||||||||||
 |
 |
 |
| TPG-C |
|
TPL-G-C |
|
TPW-C |
|
||||||||||||||||||||||||
 |
 |
 |
