Ordering Code
Specification
(1)Model Type
(2)Tube Outer Diameter(ΦD)
| Metric Size |
| Code |
04 |
06 |
08 |
10 |
12 |
14 |
16 |
| ΦD |
4mm |
6mm |
8mm |
10mm |
12mm |
14mm |
16mm |
(3)Thread Type & Size
Metric Size
| Metric Size |
| Code |
M5 |
M6 |
M8 |
| ΦD |
M5×0.8 |
M6×1 |
M8×1 |
Taper Pipe Thread
| R(PT)Thread |
Tube(Inch)-Thread(R) |
| Code |
01 |
02 |
03 |
04 |
G01 |
G02 |
G03 |
G04 |
| ΦD |
R1/8" |
R1/4" |
R3/8" |
R1/2" |
R1/8" |
R1/4" |
R3/8" |
R1/2" |

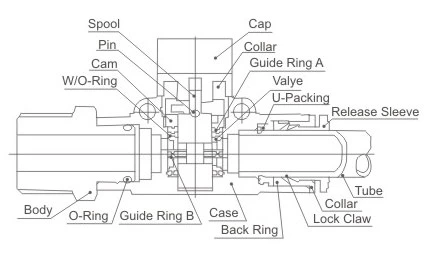

Other info

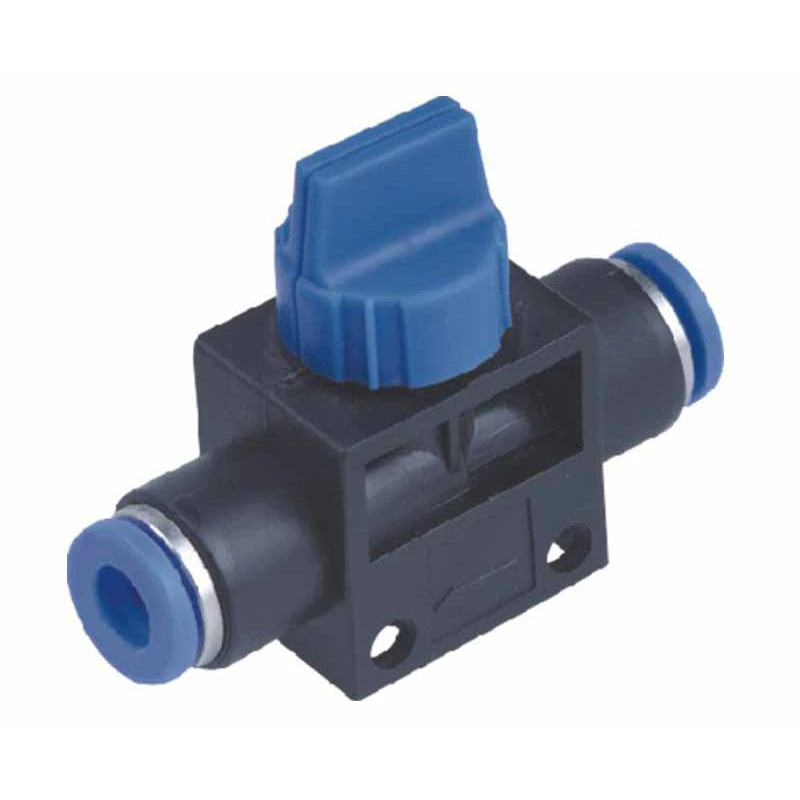

| THVFF |
| MODEL(Ф D1-Ф D2) |
| Tube(Metric) |
| THVFF06-06 |
| THVFF08-06 |
| THVFF08-08 |
| THVFF10-08 |
| THVFF10-10 |
| THVFF12-10 |
| THVFF12-12 |
|

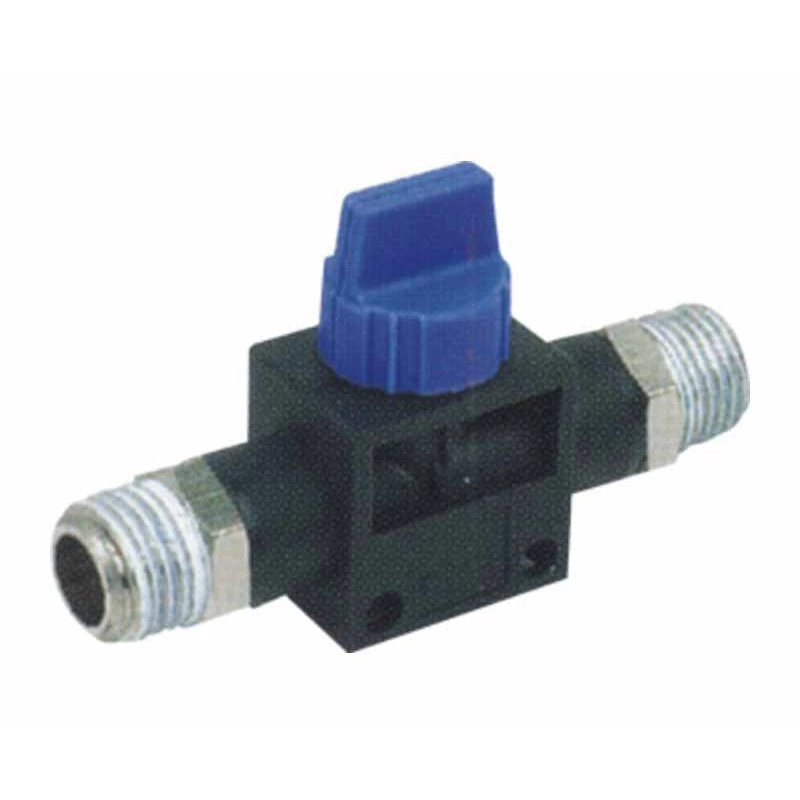

THVSS |
| MODEL(T1-T2) |
| Tube(Metric) |
| THVSS01-01 |
| THVSS02-01 |
| THVSS02-02 |
| THVSS03-02 |
| THVSS03-03 |
| THVSS04-03 |
| THVSS04-04 |
|
 |
 |

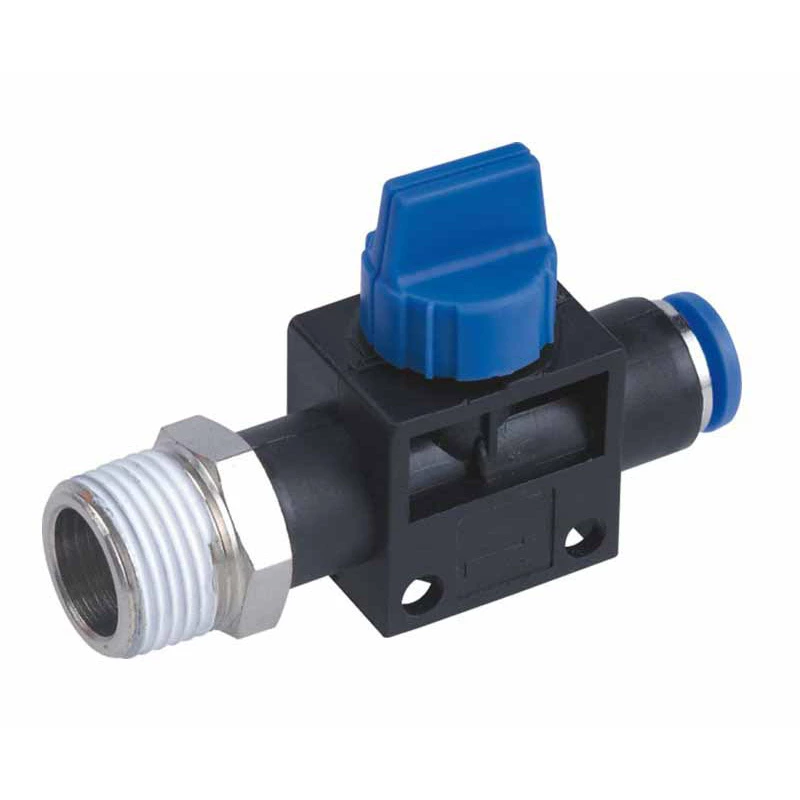

| THVSF |
| MODEL(Ф D-T) |
| Tube(Metric)- Thread(R) |
| THVSF06-01 THVSF10-03 |
| THVSF06-02 THVSF10-04 |
| THVSF06-03 THVSF12-02 |
| THVSF08-01 THVSF12-03 |
| THVSF08-02 THVSF12-04 |
| THVSF08-03 |
| THVSF10-02 |
|
THVFS |
| MODEL(Ф D-T) |
| Tube(Metric)- Thread(R) |
| THVFS06-01 THVFS10-02 |
| THVFS06-02 THVFS10-03 |
| THVFS06-03 THVFS10-04 |
| THVFS08-01 THVFS12-02 |
| THVFS08-02 THVFS12-03 |
| THVFS08-03 THVFS12-04 |
| |
|
 |
 |
| THVFS-G |
| MODEL(Ф D-T) |
| Tube(Metric)- Thread(R) |
| THVFS06-G01 THVFS12-G02 |
| THVFS06-G02 THVFS12-G03 |
| THVFS06-G03 THVFS12-G04 |
| THVFS08-G01 |
| THVFS08-G02 |
| THVFS08-G03 |
| THVFS10-G02 |
| THVFS10-G03 |
| THVFS10-G04 |
|
THVSF-G |
| MODEL(Ф D-T) |
| Tube(Metric)- Thread(R) |
| THVSF06-G01 THVSF12-G02 |
| THVSF06-G02 THVSF12-G03 |
| THVSF06-G03 THVSF12-G04 |
| THVSF08-G01 |
| THVSF08-G02 |
| THVSF08-G03 |
| THVSF10-G02 |
| THVSF10-G03 |
| THVSF10-G04 |
|
 |
 |
| THVSS-G |
| MODEL(T1-T2) |
| Tube(Metric)-Thread(R) |
| THVSS01-G01(B) |
| THVSS02-G01(B) |
| THVSS02-G02(B) |
| THVSS03-G02(B) |
| THVSS03-G03(B) |
| THVSS04-G03(B) |
| THVSS04-G04(B) |
|
 |
