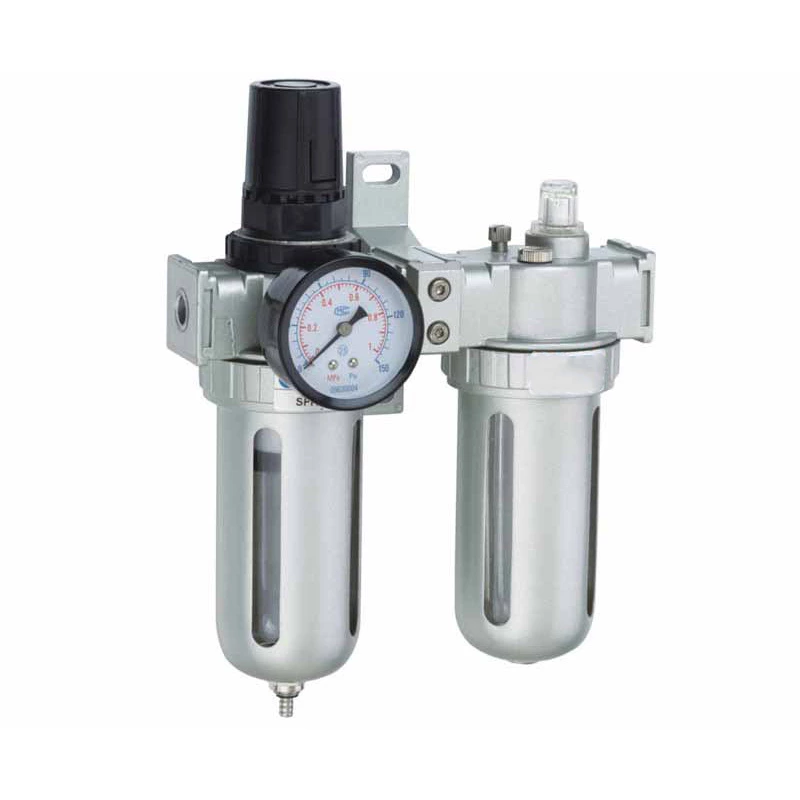

TS Series F.R.L
| ●Ensured Pressure Resistance | 1.5MPa |
| ●Highest Working Pressure | 1.0MPa |
| ●Emvironment and Fluid Temperature | 5-60°C |
| ●Protective Cover | Available |

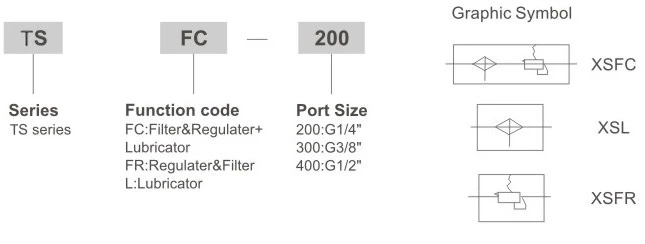

Ordering Code
Specification
| Model | TSFC/FR/L-200 | TSFC/FR/L-200 | TSFC/FR/L-200 |
| Port Size | G1/4" | G3/8" | G1/2" |
| Pressuer Gauge Bore | G1/8” | G3/8" | G1/8 |
| Ensured Pressure Resistance | 1.5MPa | ||
| Highest Working Pressure | 1.0MPa | ||
| Emvironment and Fluid Temperature | 5-60°C | ||
| Protective Cover | Avilable | ||
