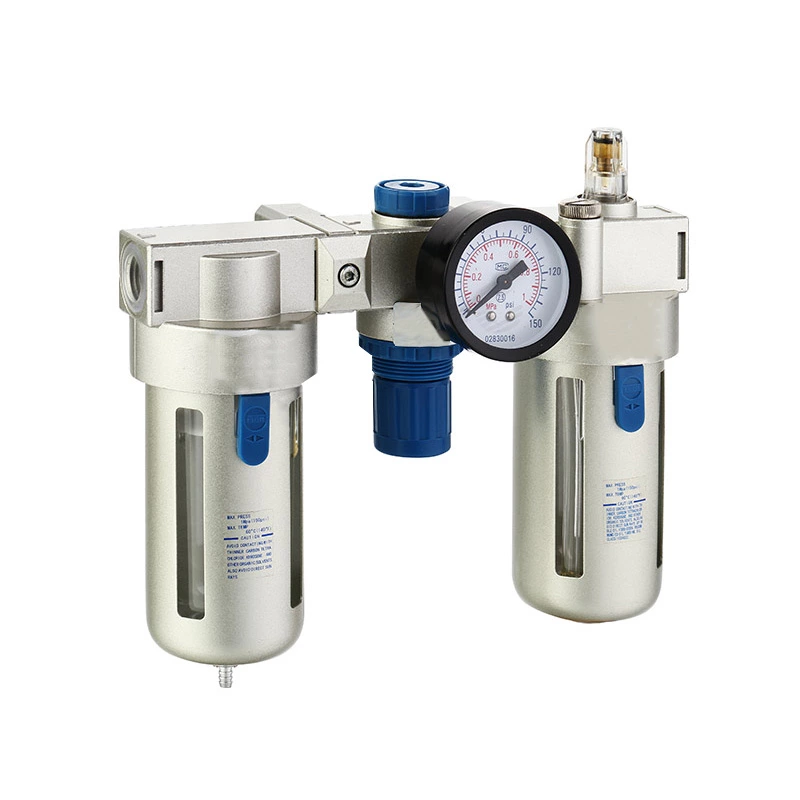

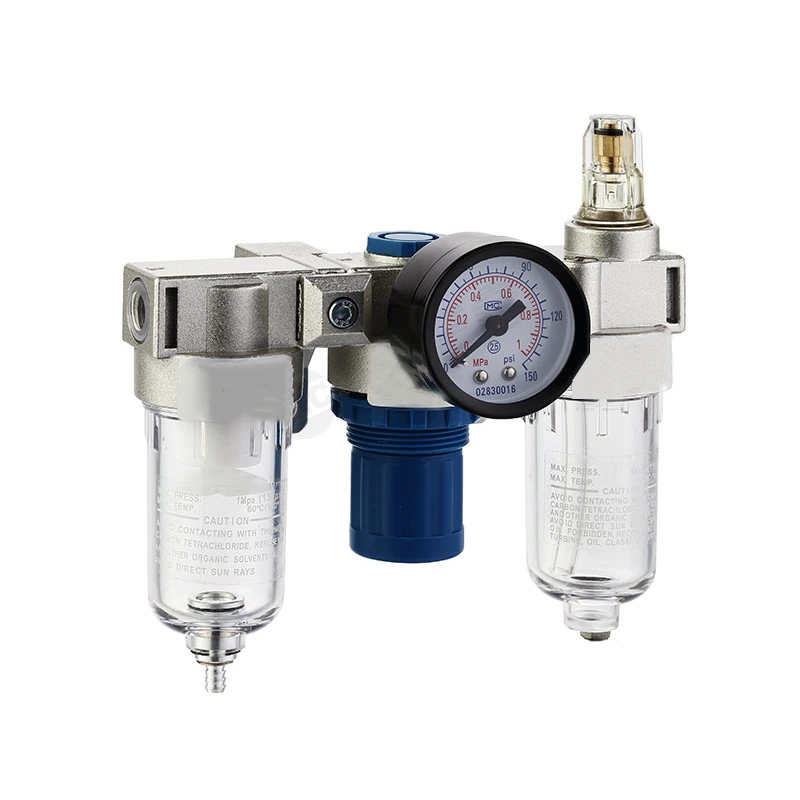

AC,BC (Three Elements)
| ●Operating Fluid | Air |
| ●Fitierlng Element Reughness | 40μ |
| ●Range of Adlustable Pressure | 0.05-0.85MPa |
| ●Max Adlustable Pressure | 0.95MPa |
| ●Ensu red Pressure Resistance | 1.5MPa |
| ●Operating Temperature Range | 5-60℃ |

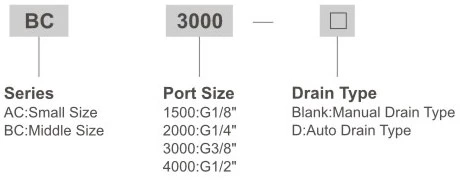

Ordering Code
Specification
| Model | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | |
| Operating Fluid | Air | |||||
| Port Size | G1/8" | G1/4" | G1/4" | G3/8" | G1/2” | |
| Fitierlng Element Reughness | 40μ | |||||
| Range of Adlustable Pressure | 0.05-0.85MPa | |||||
| Max Adlustable Pressure | 0.95MPa | |||||
| Ensu red Pressure Resistance | 1.5MPa | |||||
| Operating Temperature Range | 5-60°C | |||||
| Capacitv of Filter Cup | 15 cc | 60 cc | ||||
| Capacity of Oil Feed Cup | 25 cc | 90 cc | ||||
| Suggested Lube | LSO VG 32 or Same Grade Oil | |||||
| Weight | 0.7KG | 0.9KG | ||||
| Material | Body | Aluminum Die-casting Forming | ||||
| Container Cup | PE | |||||
| Protedive Cup Cover | Iron | |||||
| Composing Elementsl | Fitier | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |

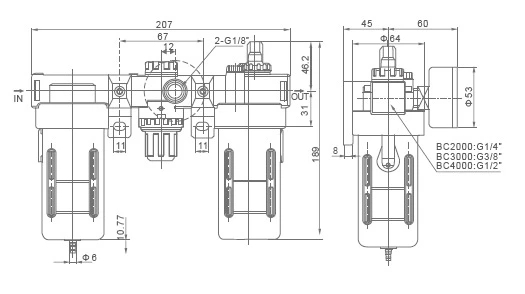

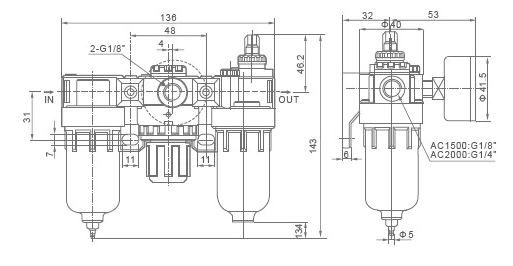

Overall Dimensions
 |
 |
| AC Series | BC Series |
