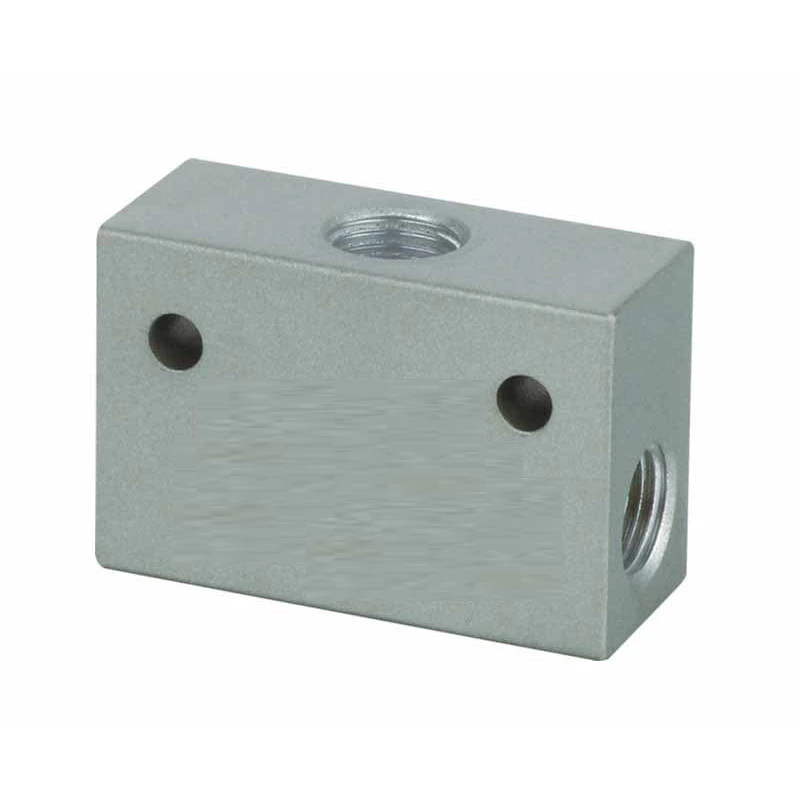

ST Series Shuttle Valve
| ●Working Medium | Air |
| ●Working Pressure Range | 0-1.0MPa |
| ●Operating Temperature Range | -5-60 |

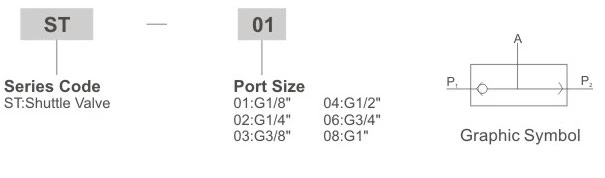

Ordering Code
Specification
| Model | ST-01 | ST-02 | ST-03 | ST-04 | ST-06 | ST-08 |
| Working Medium | Air | |||||
| Effective Secional Area | 7.5mm² | 21mm² | 40mm² | 60mm² | 110mm² | 190mm² |
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" |
| Working Pressure Range | 0-1.0MPa | |||||
| Operating Temperature Range | -5-60 | |||||
Overall Dimensions
| Model/Symbol | A | B | C | D | E | F | G |
| ST-01 | 40 | 24 | 16 | 4.5 | 25 | 20.5 | G1/8” |
| ST-02 | 50 | 35 | 22 | 5.5 | 35 | 25 | G1/4” |
| ST-03 | 75 | 48 | 30 | 7 | 50 | 42 | G3/8” |
| ST-04 | 75 | 48 | 30 | 7 | 50 | 42 | G1/2” |
| ST-06 | 110 | 72 | 40 | 7 | 70 | 58 | G3/4” |
| ST-08 | 110 | 72 | 40 | 7 | 70 | 58 | G1” |
