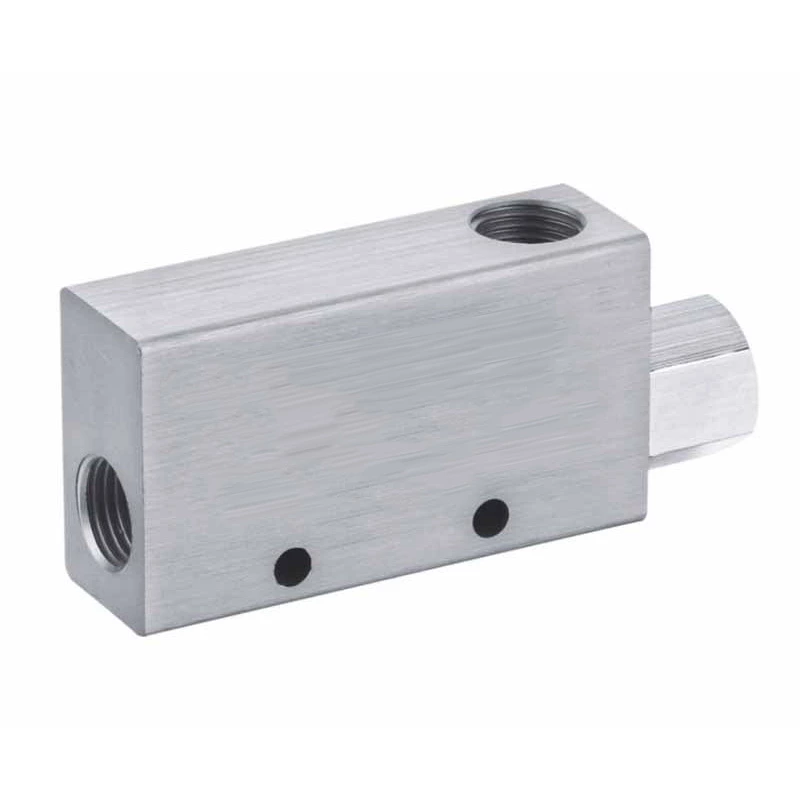

CV Series Vacuum Valve
| ●Working Medium | Air |
| ●Working Pressure Range | 0-1.0MPa |
| ●Shortest Excitation Time | 0.05 Second |
| ●Operating Temperature Range | ≤10cm³/min |

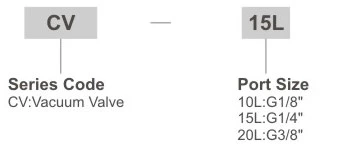

Ordering Code
Specification
| Model | CV-10 | CV-15 | CV-20 |
| Working Medium | Air | ||
| Working Pressure Range | 0-1.0MPa | ||
| Shortest Excitation Time | 0.05 Second | ||
| Operating Temperature Range | ≤10cm³/min | ||

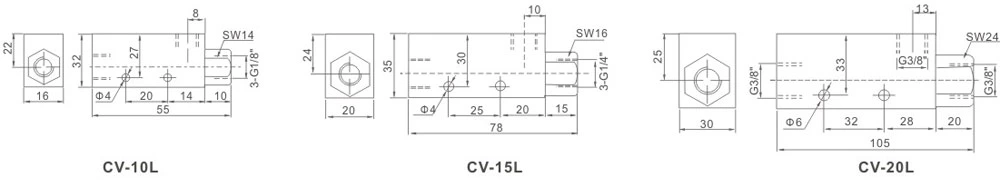

Overall Dimensions
